High Quality Jacuzzi Steam Cabin - SSWW STEAM ROOM /STEAM CABIN MODEL BU615 – SSWW Detail:

Technical Parameters

Glass color	Transparent
Glass door thickness	6mm
Aluminum profile color	Dark Brushed
Bottom tray color / skirt apron	White / Two-sides & double-skirt
Door style	Two-direction opening & sliding door
Package quantity	3
Total package volume	2.532m³
Flow rate of drainer	25L/ min
Package way	poly bag+ carton + wooden board
Transportation Weight(Gross Weight)	320kgs
20 GP / 40GP / 40HQ loading capacity	11sets /22sets /24sets

Features & Functions

BU611 (9)

BU615 Part name

STEAM CABIN MODEL BU611

The picture shows a right side spare part;

Please refer it symmetrical ly if you choose a left side part.

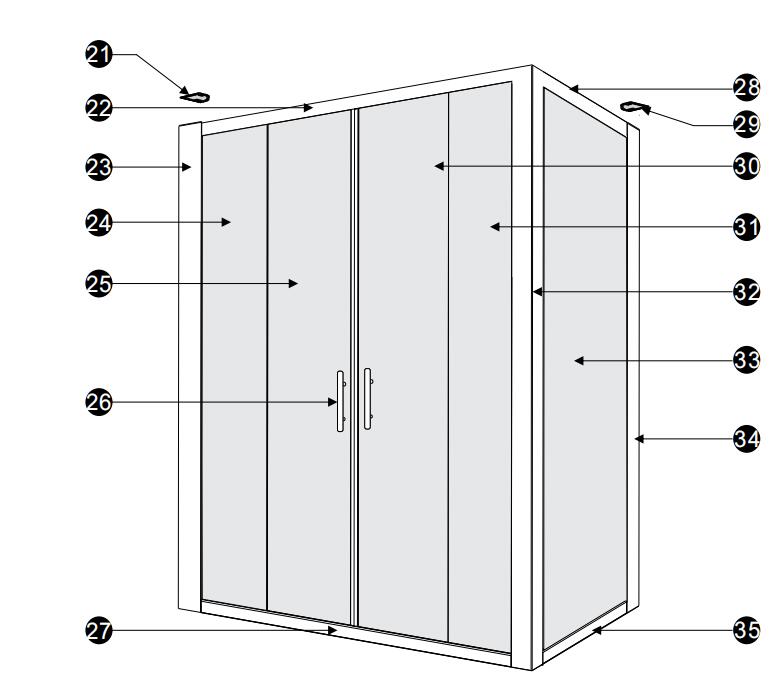

STEAM CABIN MODEL BU615

21.Left silicone pad

22.Top guide aluminum LC368

23.Left aluminum LC396

24.Left & Front ﬁxed glass

25.Left glass door

26.Handle

27.Down guide aluminum LC389

28.Top guide aluminum LC368

29.Righ silicone pad

30.Right glass door

31.Right & Front ﬁxed glass

32.Corner aluminum LC394

33.Right ﬁxed glass

34.Right aluminum LC396

35.Down guide aluminum LC389

STEAM CABIN MODEL BU615

1.Sewage nozzle

2.Water feedback net

3.Bath pipeline cleaning

4.Air switch

5.Air conditioner

6.Pillow

7.Small nozzle

8.Light

9.Water drainage device(Waterfall inlet)

The picture shows a right side spare part;

Please refer it symmetrical ly if you choose a left side part.

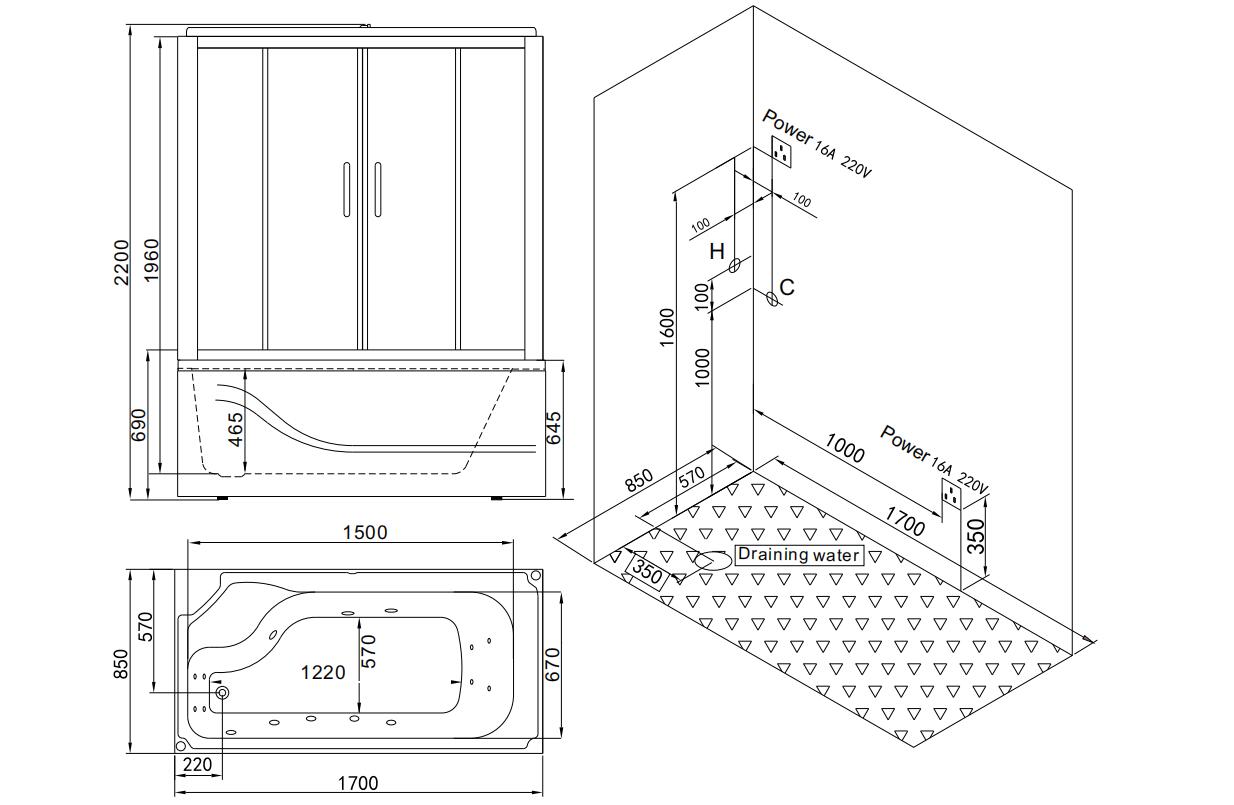

BU615 water and electricity utilities installation

STEAM CABIN MODEL BU615

The picture shows a right side spare part;

Please refer it symmetrical ly if you choose a left side part. Rated parameters for power sockets: 220V-240V~50Hz/60Hz. Power socket cords: steam room >4mm2 , bathtub >2.5mm2

Remarks：Earth Leakage Protector 32 ampere should be installed on power supply wire.

Product advantages

standard package

Packaging

Company Profile

Standing for Splendid Sanitary Ware World, SSWW brand becomes more and more popular in both domestic and overseas market with continuous investment by Foshan Royalking Sanitary Ware Co., Ltd., which is a professional manufacturer specialized in bathroom solutions for decades. As one of the largest integrated sanitary ware manufacturers in China, SSWW currently has 2 large production bases with over 1000 employees , covering more than 150,000sqm with 6 chain-related factories manufacturing massage bathtub, steam cabin, ceramic toilet, ceramic basin, shower enclosure, bathroom cabinet, hardware fittings and accessories, etc.
