SSWW MASSAGE BATHTUB A3102

SSWW MASSAGE BATHTUB A3102

Model: A3102

Basic Information

  • Type: Walk-in Massage bathtub
  • Dimension: 1600(L) ×800(W) ×650(H) mm
  • Color: White
  • Skirt-type: Two-side & single-skirt
  • Control panel: HP811AF/ BH608FN/Pneumatic switch
  • Seating persons: 1
  • Water capacity: 260L
  • Direction: Left/ Right
  • Product Detail

    Product Tags

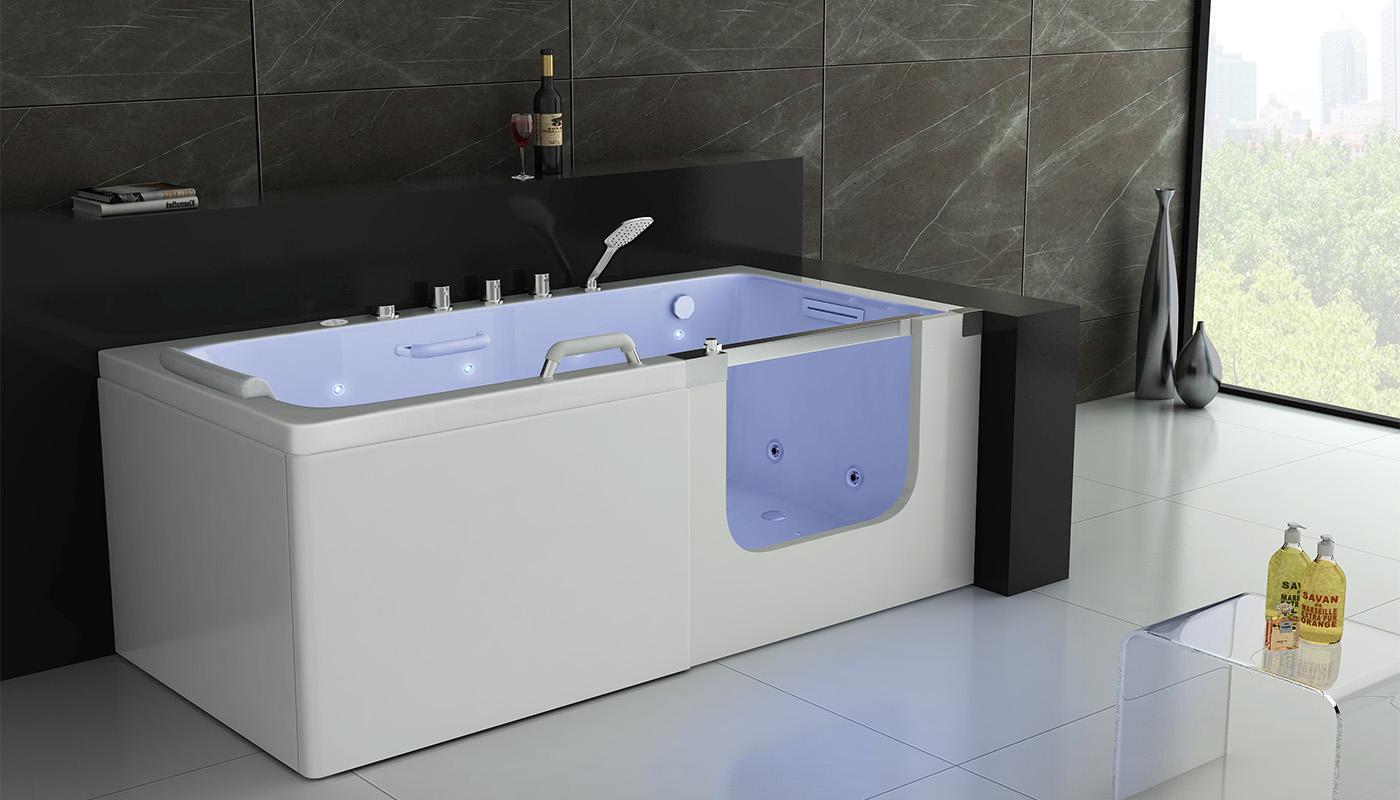

    SSWW MASSAGE BATHTUB A3102 y

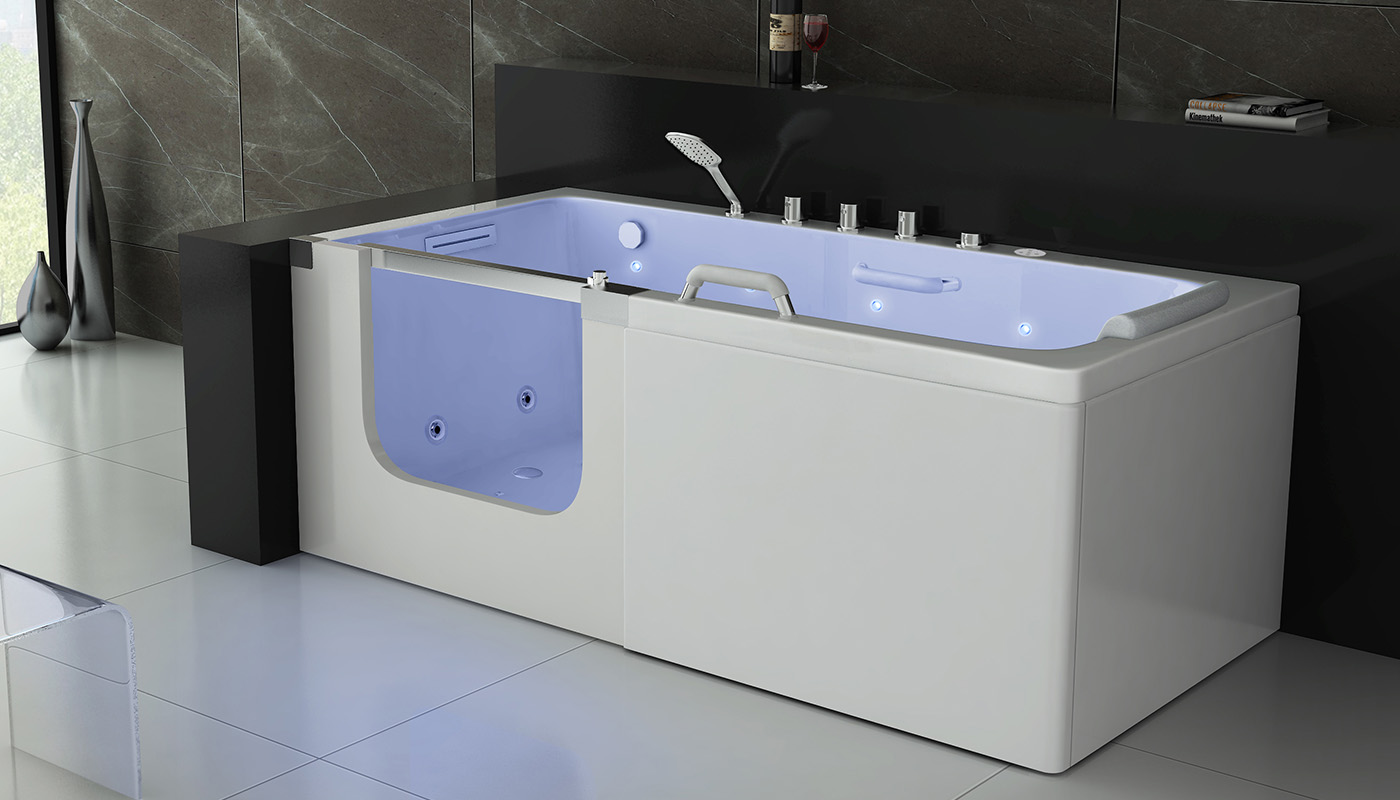

    SSWW MASSAGE BATHTUB A3102 z

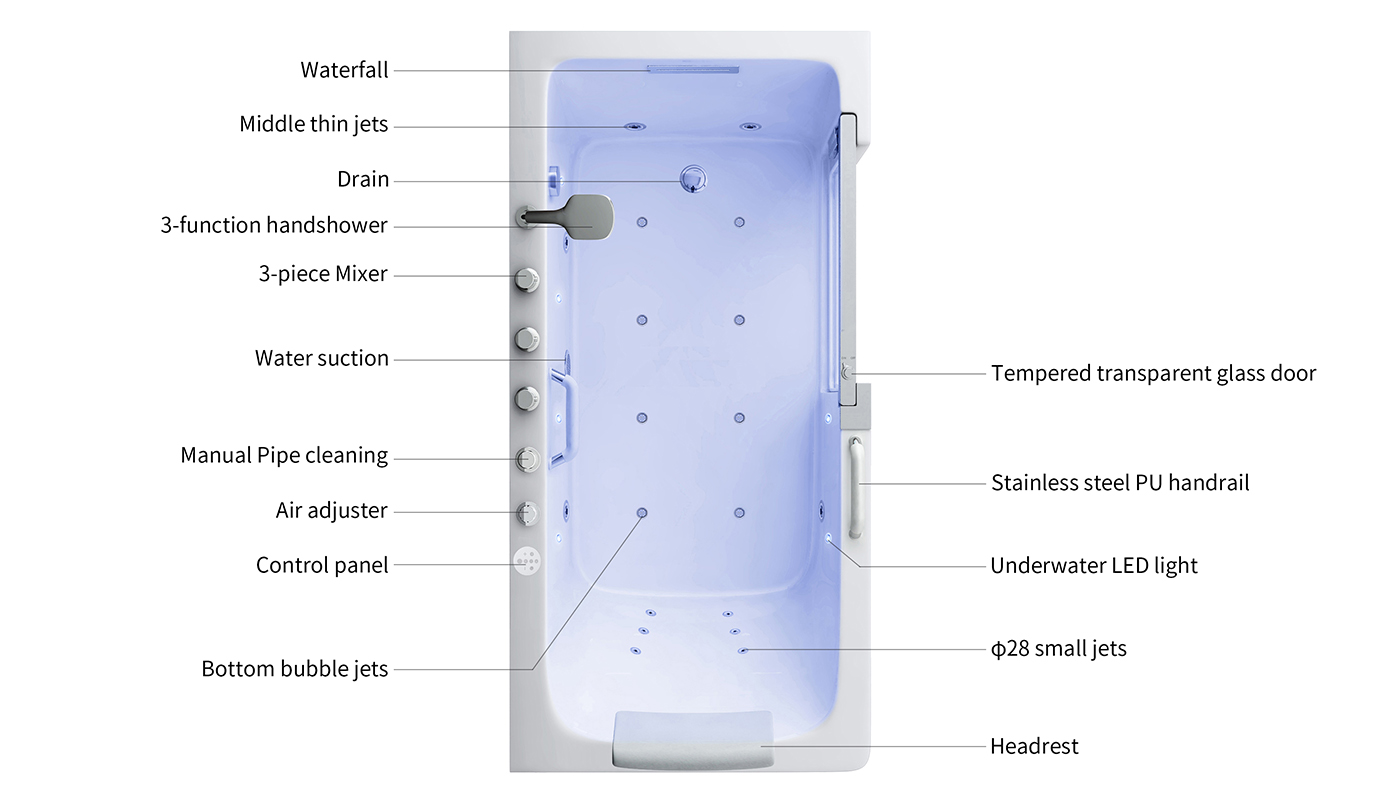

    SSWW MASSAGE BATHTUB A3102 p

    Technical Parameters

    Stainless steel suction 1 pcs
    Middle thin jets 5 pcs
    Bottom bubble jets 8 pcs
    Backside drain jets 8 pc
    Water pump 1 pc
    Rated Power 1 pcs
    Air pump  1 pcs
     Rated Power: HP811AF/ BH608FN/Pneumatic switch  1.98kw/ 0.75 kw/0.75kw
     N.W : HP811AF/ BH608FN/Pneumatic switch  88kgs/ 80kgs/ 75kgs
     G.W: HP811AF/ BH608FN/Pneumatic switch  109kgs/ 101kgs / 96kgs
    20 GP / 40GP / 40HQ loading capacity 18sets / 39sets / 39set
    Packing way Poly bag + carton + wooden board
    Packing dimension / Total volume 1710(L)×910(W)×840(H)mm / 1.31 CBM

    Features

    HP811AF (2)

    HP811AF

    · Water level sensor

    · O3 sterilization

    · Waterfall intake

    · LED light

    · Manual pipe-cleaning

    · Touch screen panel

    · Thermostatic heater

    · Hydro massage

    · Champagne bubble massage

    · Hot/Cold water exchange

    · Multi-function hand shower

    BH608FN

    Underwater LED light

    Hot/cold water exchange

    Manual pipe-cleaning

    Water level sensor

    Hydro massage

    Waterfall intake

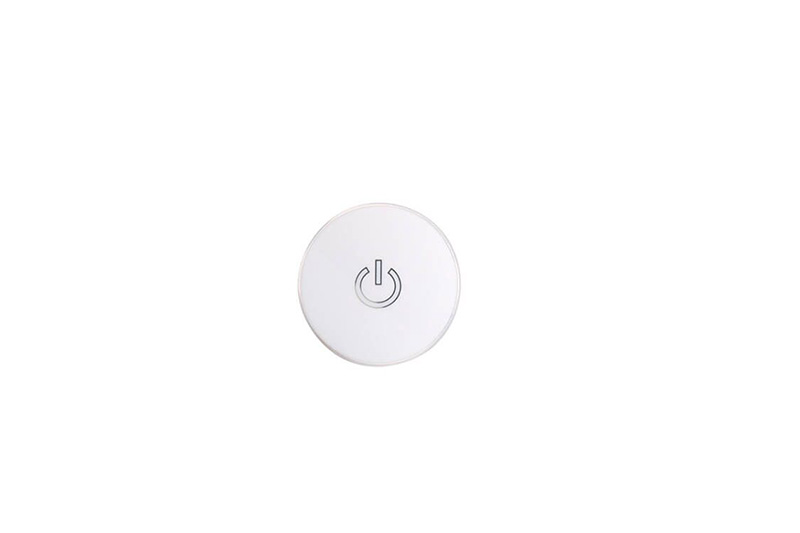

    BH608FN

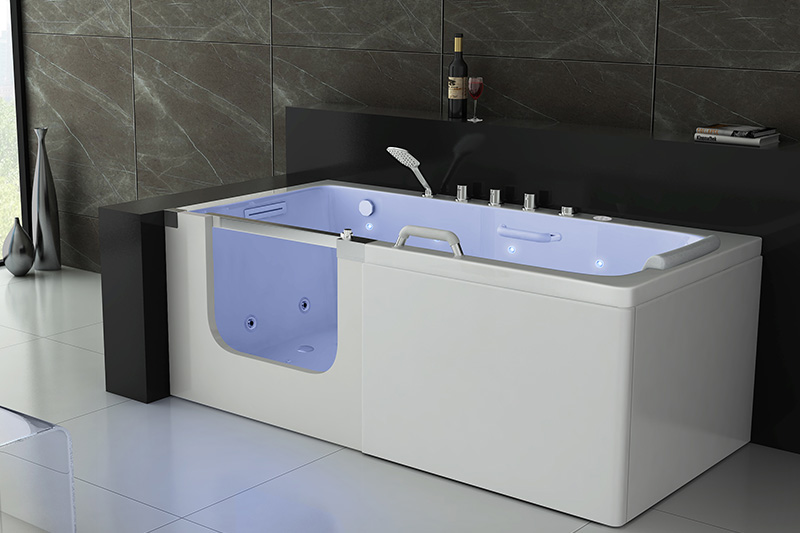

    SSWW MASSAGE BATHTUB A3102 g

    Pneumatic switch

    Hydro massage function

    Manual operation pipe-cleaning

    Waterfall outlet

    Hand shower

    Note: Empty bathtub or accessory bathtub for option

    Product Features

    Product Features

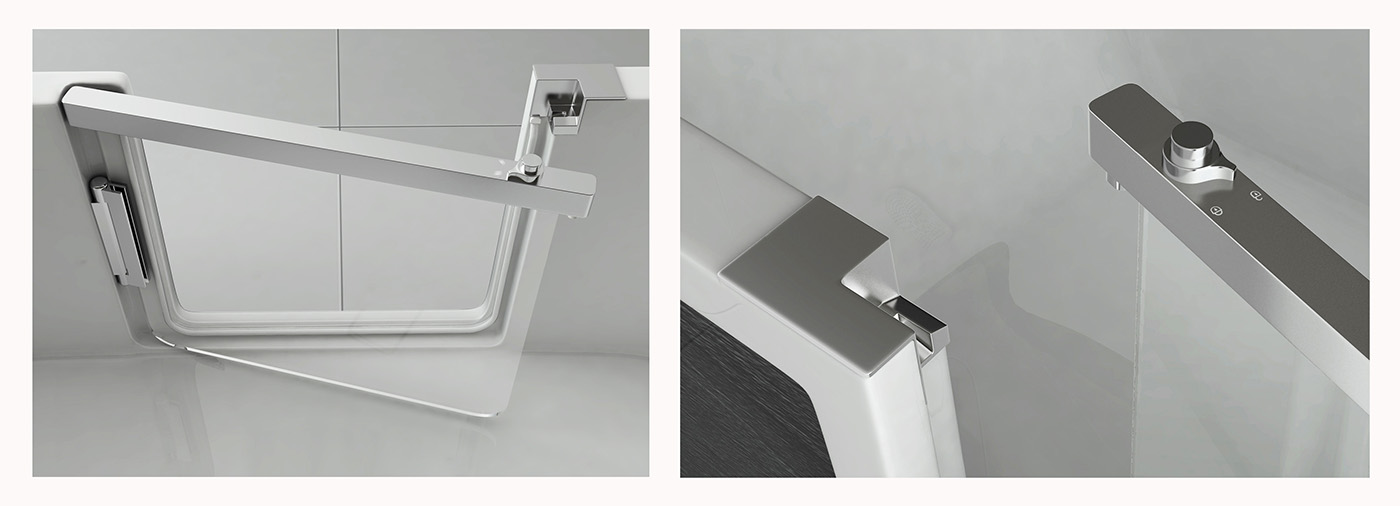

    Tempered transparent glass door

    1. walk-in bathtub style, easy for entry.

    2. The combination of stainless steel handrail and glass door which make the design simple and elegant.

    3. With locking mechanism, good waterproof effect.

    SSWW MASSAGE BATHTUB A3102 l

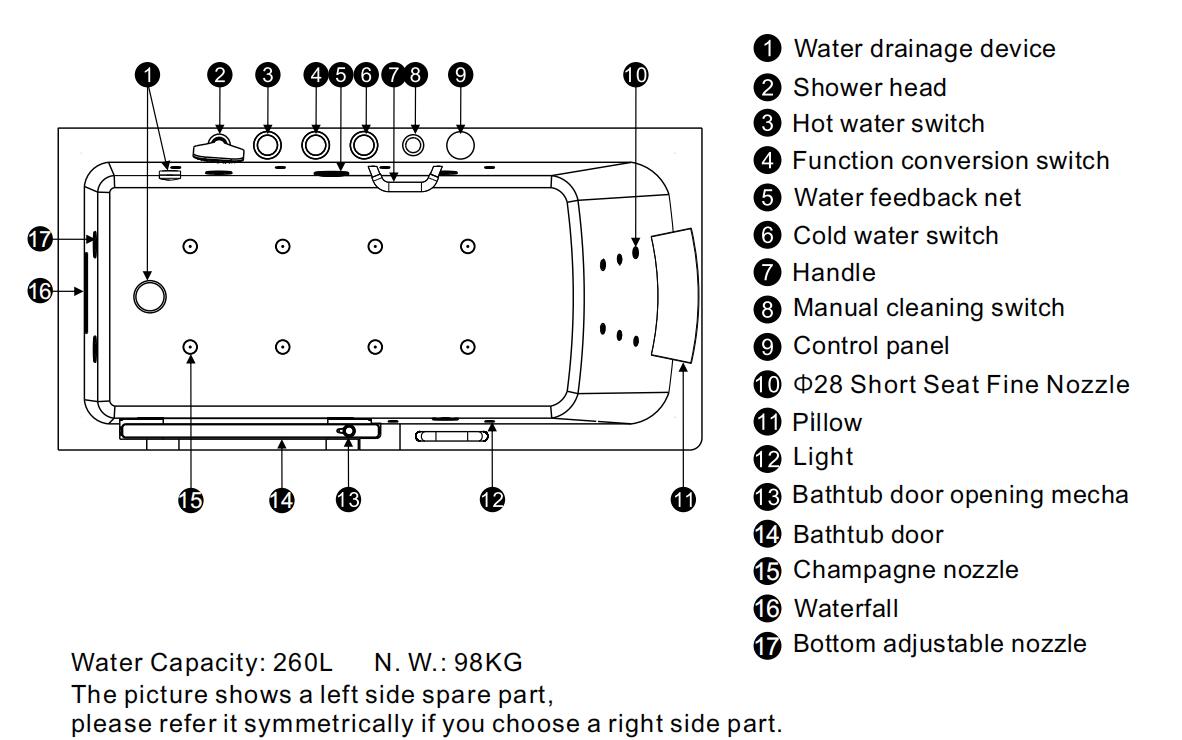

    A3102 Part name

    A3102 Part name

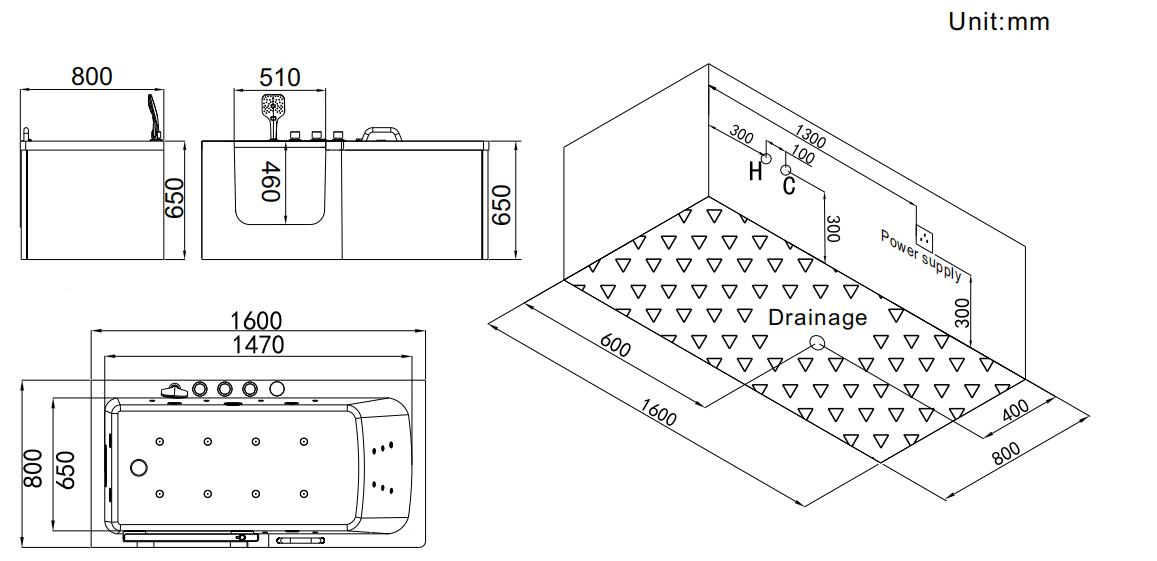

    A3102 Water and electricity utilities installation

    A3102 Water and electricity utilities installation

    Remarks

    1.Earth Leakage Protector 32 20 10 ampere should be installed on power supply wire.

    2.Rated parameters for power: 220~240V 50/60Hz.

    3.Branch circuit power wire diameter of bathtub not less than 2.5mm2.

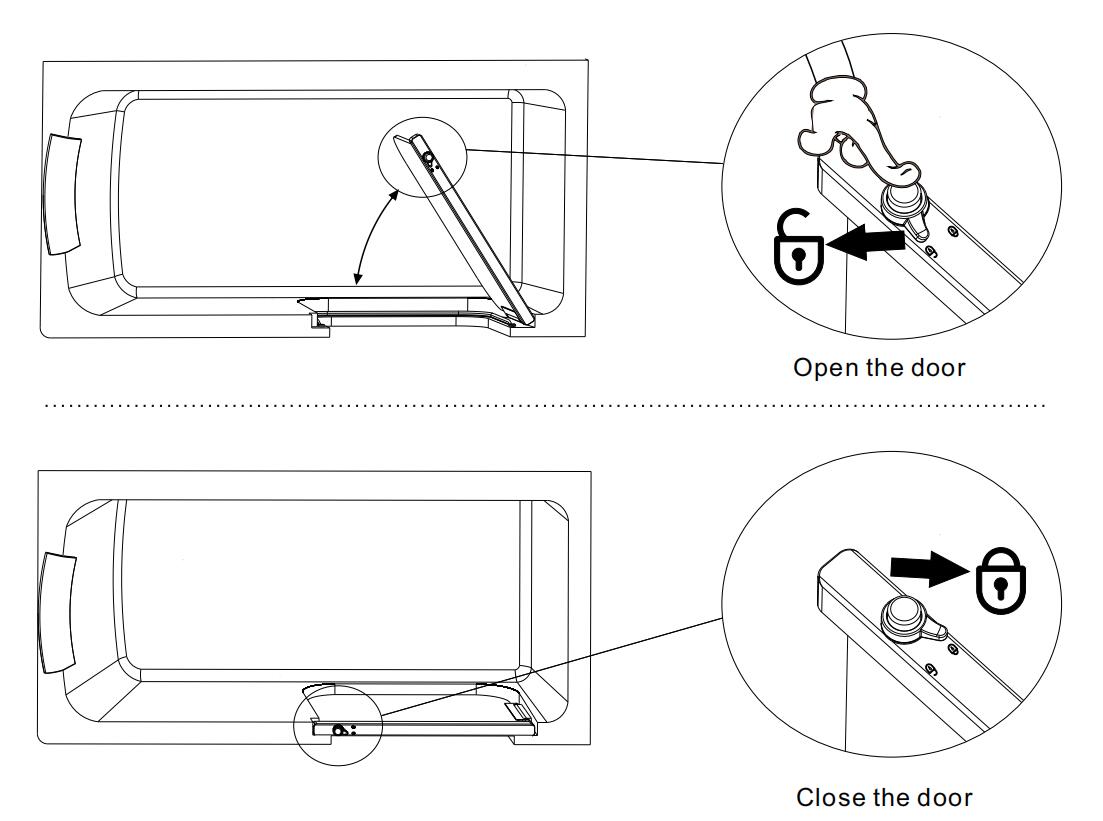

    A3102 Door structure

    A3102 Door structure

    Packaging

    Packaging (1)

    Carton box

    Packaging (2)

    Wooden

    Packaging (3)

    Carton box + wooden frame
