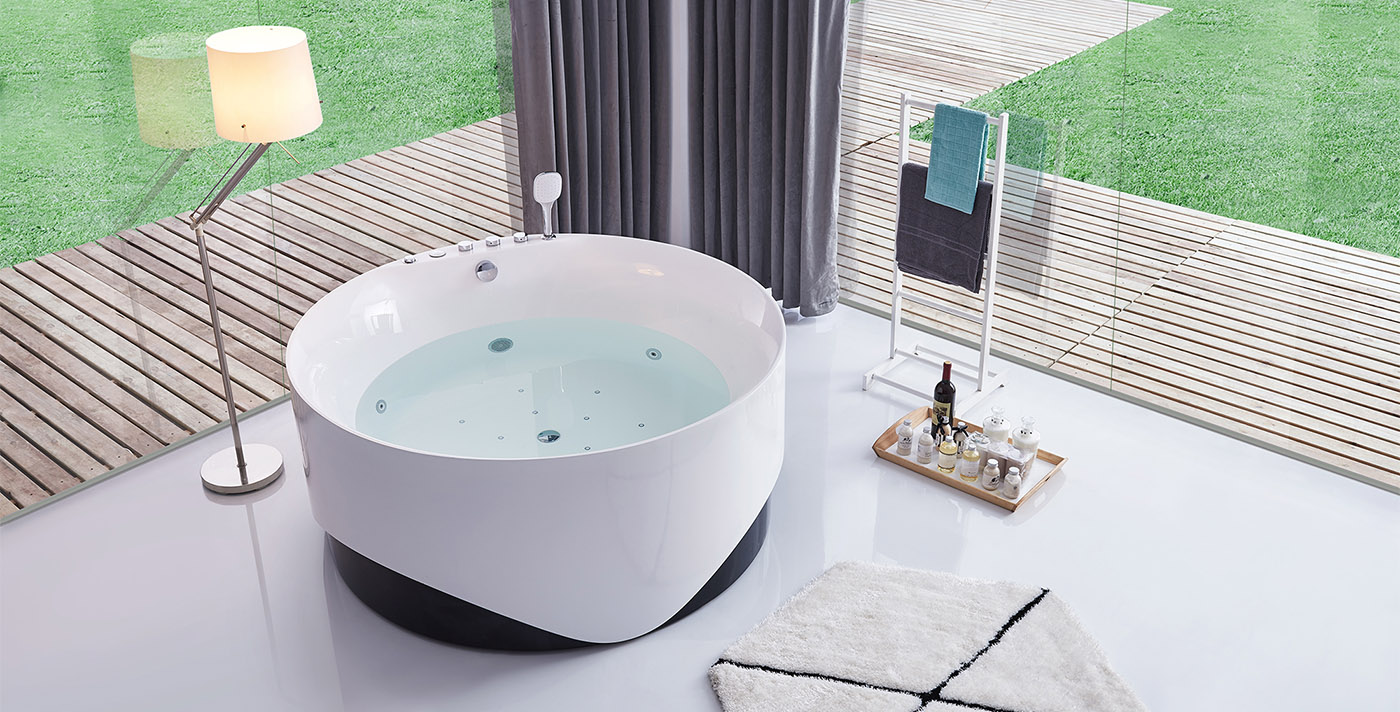

SSWW MASSAGE BATHTUB AX223A

SSWW MASSAGE BATHTUB AX223A

Model: AX223A

Basic Information

  • Type: Massage bathtub
  • Dimension: 1500(L) ×1500(W) ×660(H) mm
  • Color: White
  • Skirt-type: Whole skirt
  • Control panel: Pneumatic control/ BH608FN/ H631S Seating
  • Seating persons: 2
  • Water capacity: 336L
  • Direction: W/O direction
  • Product Detail

    Product Tags

    SSWW MASSAGE BATHTUB AX223A

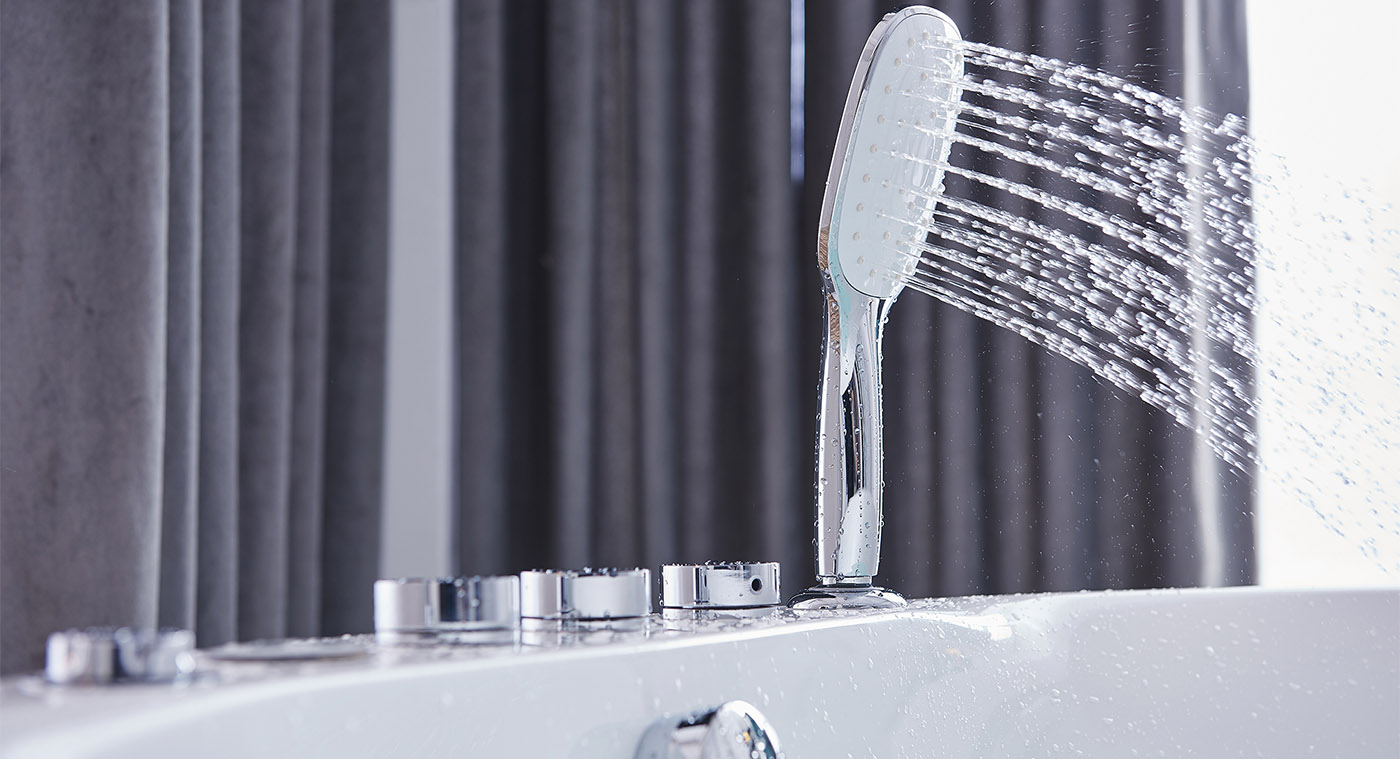

    AX-223A(6)
    AX-223A(9)

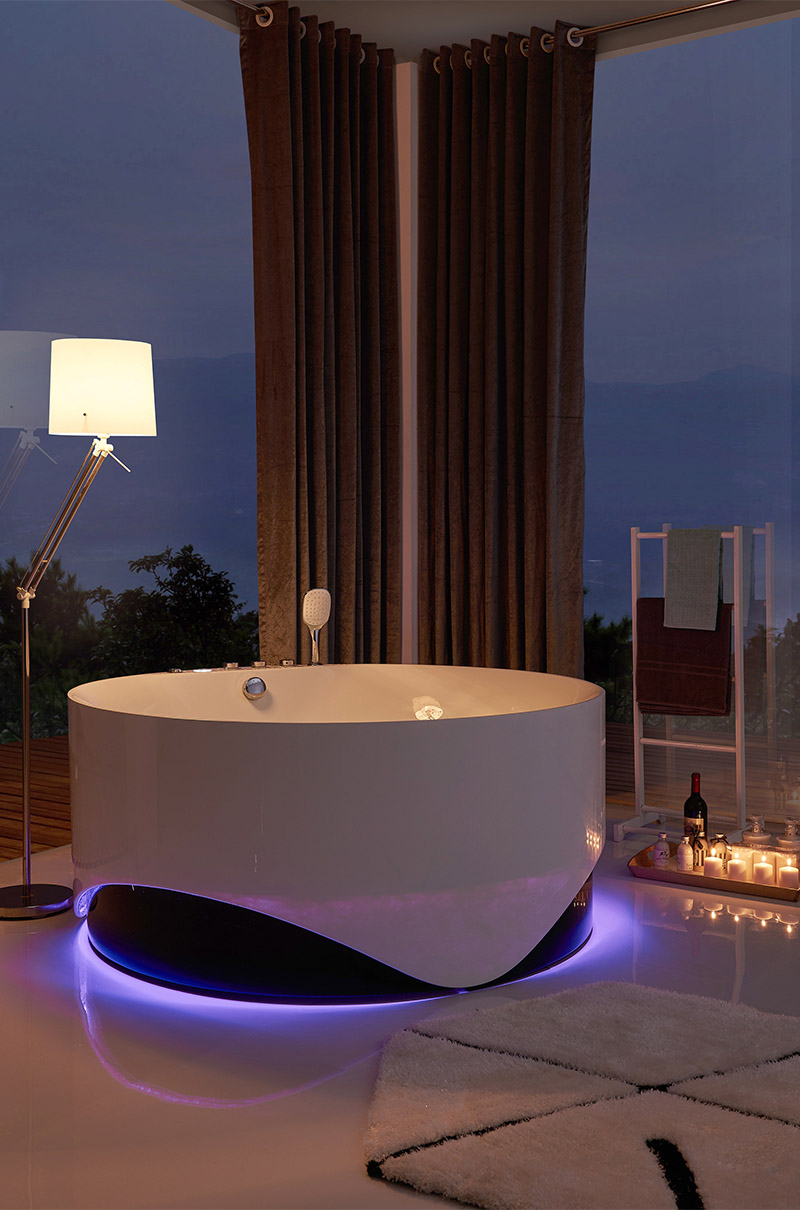

    AX-223A(10)

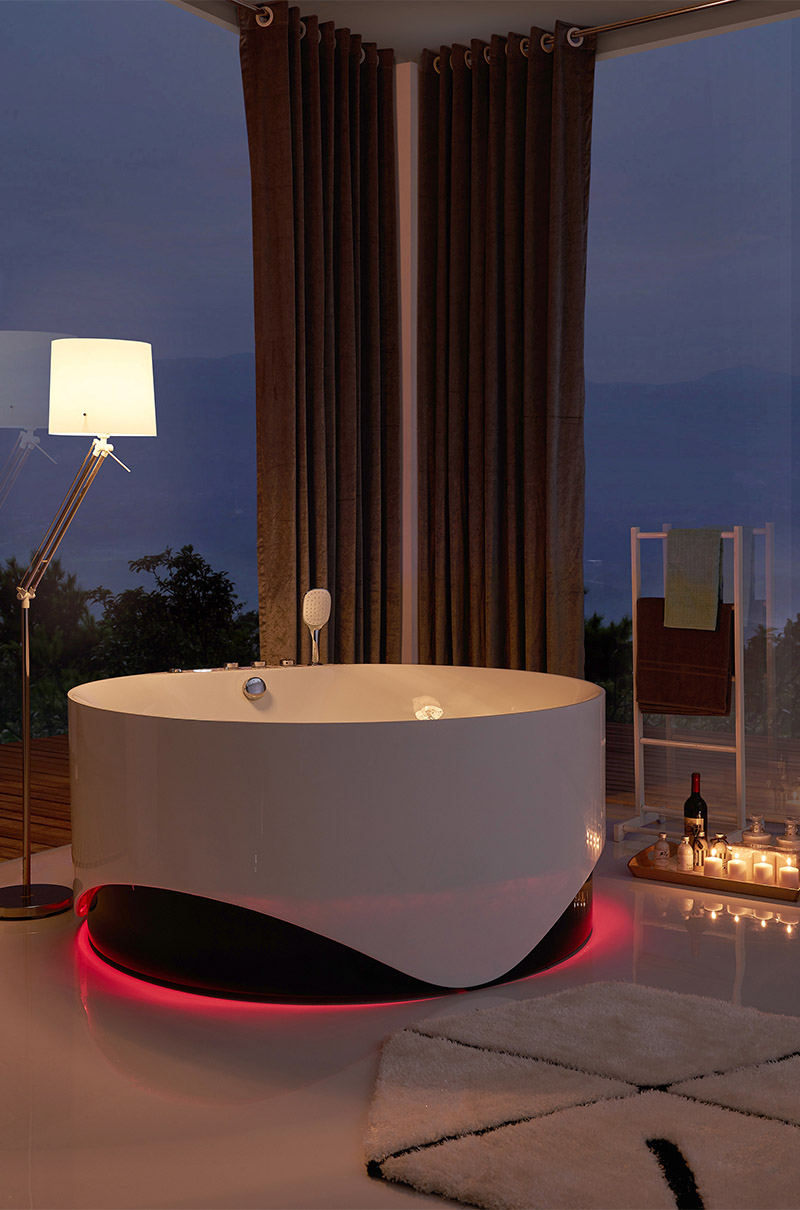

    AX-223A(13)

    Technical Parameters

    Stainless steel suction 1 pcs
    Big hydro massage jets 5 pcs
    Bottom bubble jets 12 pcs
    Water pump 1 pcs
    Air pump 1 pcs
    Rated Power 0.75kw
    N.W / G.W 102kgs/ 165kgs
    20 GP / 40GP / 40HQ loading capacity 9sets / 21sets / 21sets
    Packing way Poly bag + carton + wooden board
    Packing dimension / Total volume 1610(L)×1610(W)×780(H)mm / 2.03CBM

    Display of Control Panel

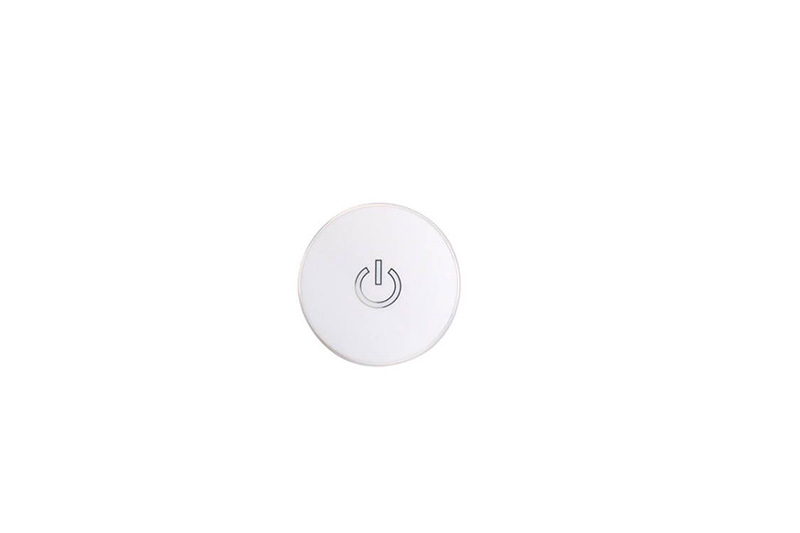

    BH608FN

    BH608FN

    Stainless steel suction: 1 pcs

    Big hydro massage jets: 5 pcs

    Bottom bubble jets: 12 pcs

    Water pump: 1 pcs

    Rated Power: 0.75kw

    N.W / G.W: 102kgs/ 165kgs

    20 GP / 40GP / 40HQ loading capacity: 9sets / 21sets / 21sets

    Packing way: Poly bag + carton + wooden board Packing dimension / Total volume: 1610(L)×1610(W)×780(H)mm / 2.03CBM

    H631S

    Stainless steel suction: 1 pcs

    Big hydro massage jets: 5 pcs

    Bottom bubble jets: 12 pcs

    Water pump: 1 pcs

    Air pump: 1 pcs

    Rated Power: 0.75kw

    N.W / G.W: 102kgs/ 165kgs

    20 GP / 40GP / 40HQ loading capacity: 9sets / 21sets / 21sets

    Packing way: Poly bag + carton + wooden board Packing dimension / Total volume: 1610(L)×1610(W)×780(H)mm / 2.03CBM

    H613S (1)

    Features

    SSWW MASSAGE BATHTUB AX223A

    Pneumatic control

    Manual pipe cleaning

    Hot/cold water exchange

    Waterfall intake

    Hydro massage

    H631S

    Waterfall intake

    Water level sensor

    Touch screen panel

    Hot/cold water exchange

    LED light & skirt light

    Manual pipe cleaning

    Hydro massage

    Air bubble massage

    Multi-function hand shower

    H613S (1)
    BH608FN

    BH608FN

    Touch screen on/off button

    Underwater LED light

    Manual pipe cleaning

    Hydro massage

    Hot/cold water exchange

    Waterfall intake

    Water level sensor

    Product Features

    Product Features

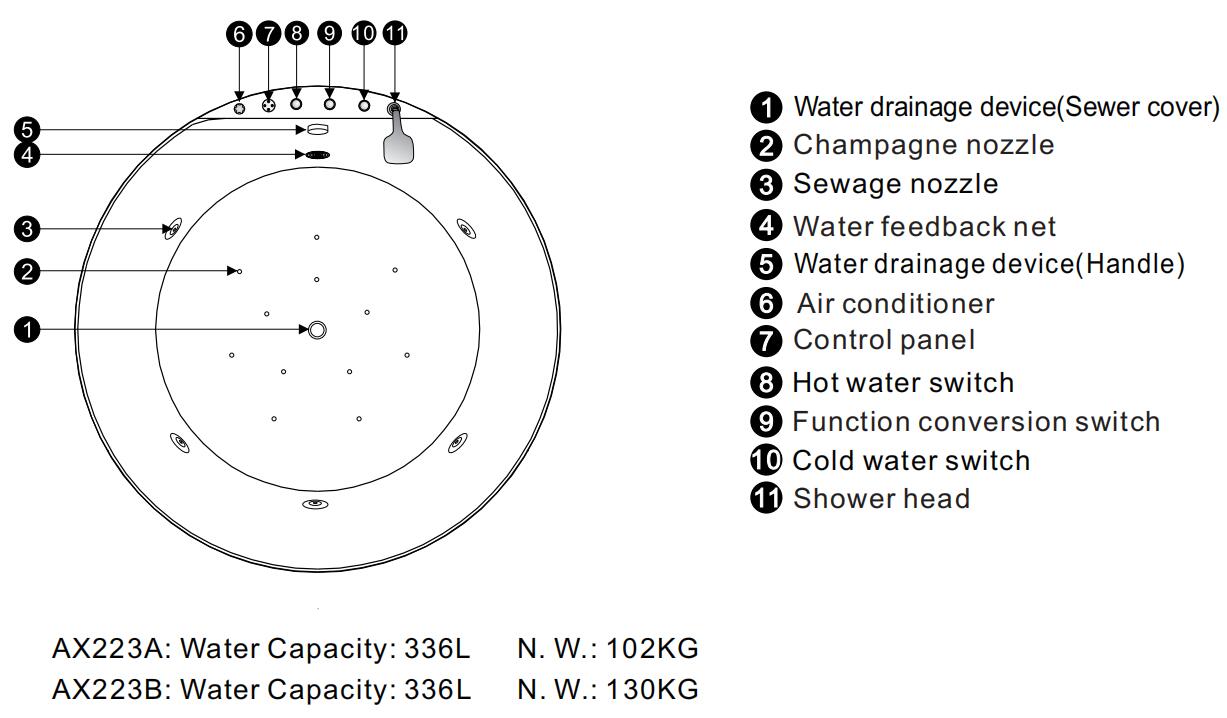

    AX223A/AX223B Computer Massage cylinder part names

    AX223AAX223B Computer Massage cylinder part names

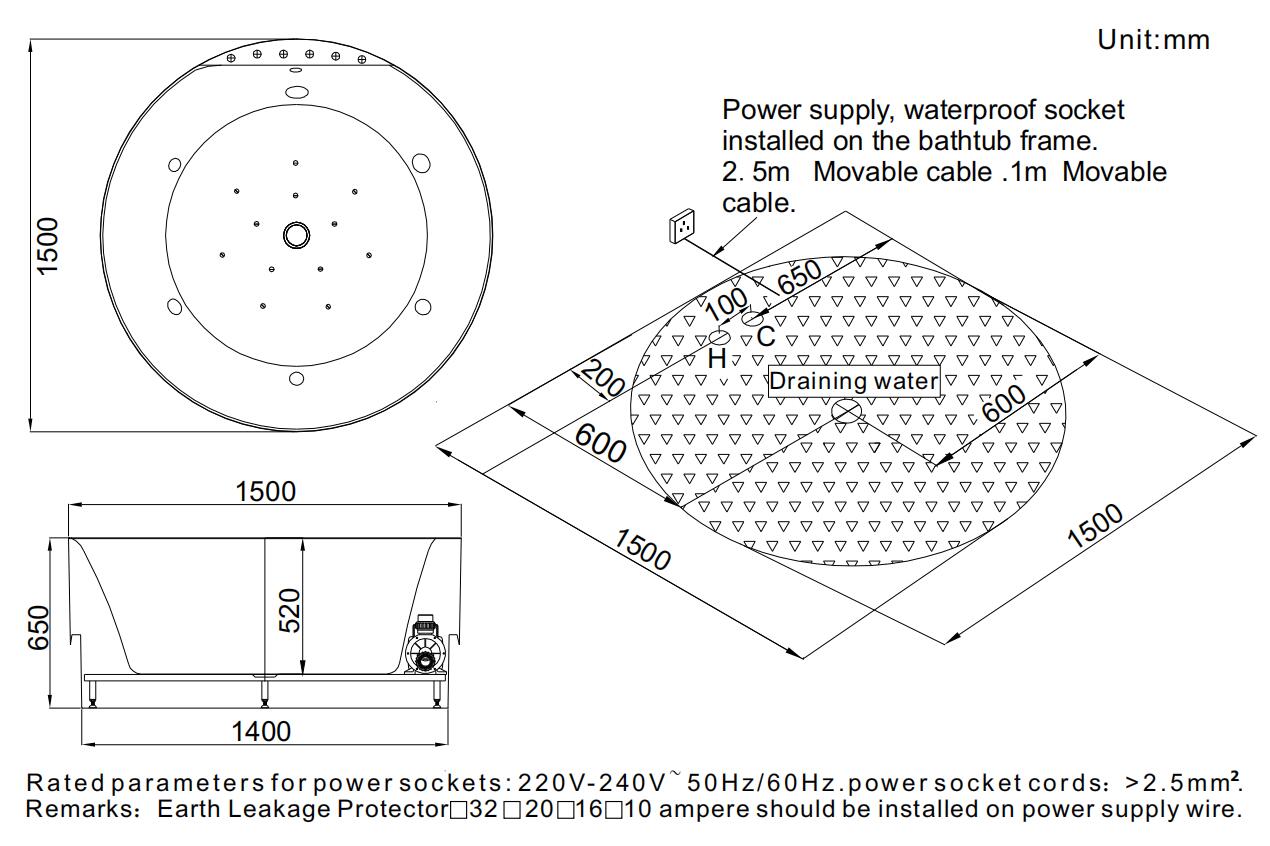

    AX223A/AX223B Water and electricity utilities installation

    Water and electricity utilities installation

    Packaging

    Packaging (1)

    Carton box

    Packaging (2)

    Wooden

    Packaging (3)

    Carton box + wooden frame
