SSWW STEAM ROOM BU602 1000×1000MM
SSWW STEAM ROOM BU602 1000×1000MM
Model: BU602

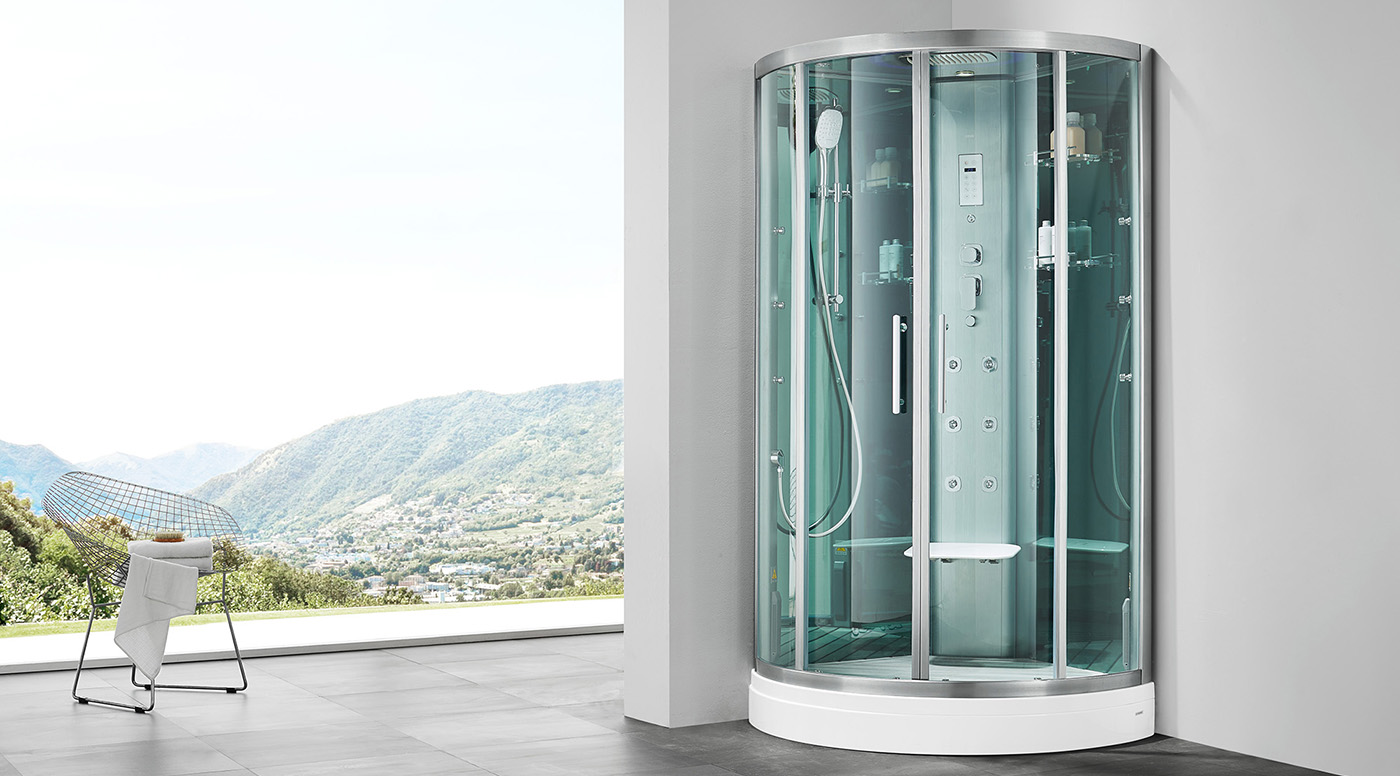

The BU602 corner steam shower is 1000(L) ×1000(W) ×2180(H) mm features tempered glass and a touch control panel. The BU602 is the perfect one person steam shower for any corner or free standing application. A favorite of both commercial and residential customers, it features sliding glass doors, chrome trim, and a fold up seat for additional space. The sleek design and curved clear glass is both stylish and appealing. All necessary shower internal plumbing components such as shower-heads, control valves, hoses, and elbows are conveniently included.
A spa in your own home. SSWW BU602 Luxurious shower and steam systems are equipped with everything you need for total and complete relaxation. This tempered glass, multi-jet shower enclosure comes with an ultra quick heating steam generator, multiple body massage jets, a drenching wide Rainfall shower head and a hand held shower head with adjustable settings for many different water spray patterns. Additionally, the multi colored led lights illuminate the aroma therapy filled steam to create the ultimate relaxation experience.
Technical Parameters
| Glass color | Transparent |
| Glass door thickness | 6mm |
| Aluminum profile color | Dark Brushed |
| Bottom tray color / skirt apron | White / One-side & single-apron |
| Door style | Two-direction opening & sliding door |
| Total rated power/Supply Current | 3.1kw/13.5A |
| Flow rate of drainer | 25L/ min |
| Package quantity | 3 |
| Total package volume | 1.447m³ |
| Package way | poly bag+ carton + wooden board |
| Transportation Weight(Gross Weight) | 216kgs |
| 20 GP / 40GP / 40HQ loading capacity | 16sets /32sets /40se |
Standard function
Steam room with acrylic bottom tray
Alarm system
Glass shelf
Ionizer
FM radio
Fan
Folding acrylic stool
Time /temperature setting
Roof lighting & colorful LED light
Bluetooth phone answering & music player
Top shower & hand shower & back nozzles & side nozzles
Hot/cold exchange mixer
Steam generator cleaning
Double steam outlet
Aluminium door handle
Wood-plastic floor (optional)

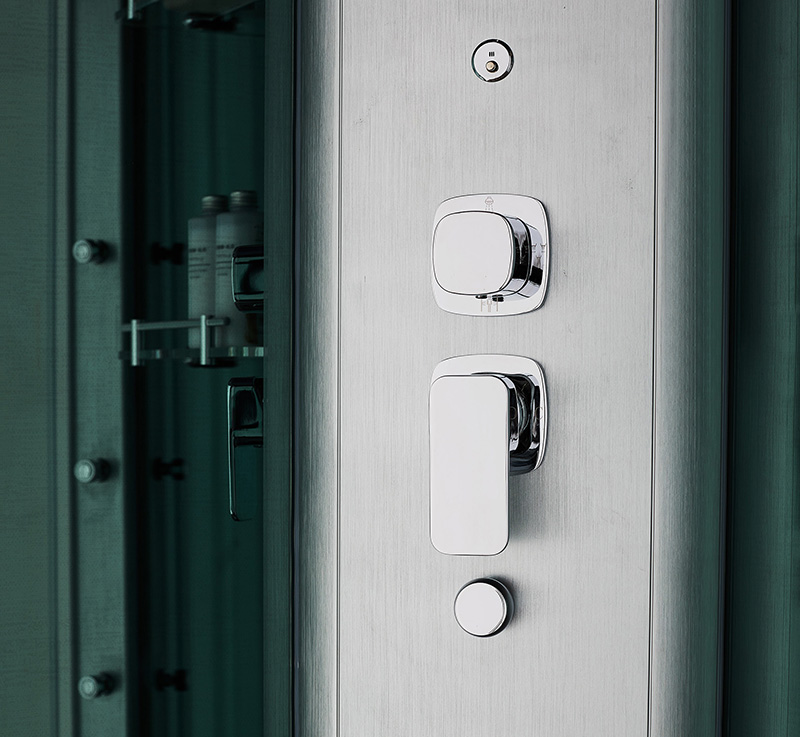

BU602 Faucet

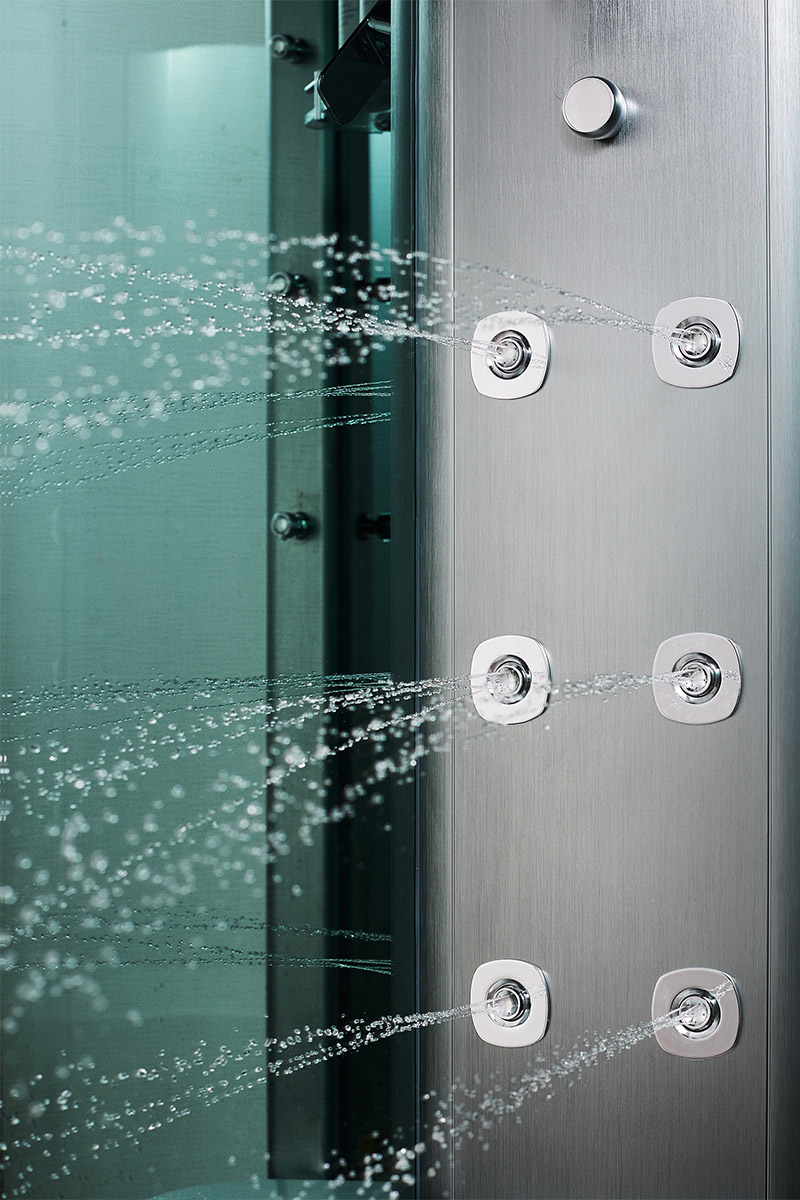

BU602 Back nozzles (1)

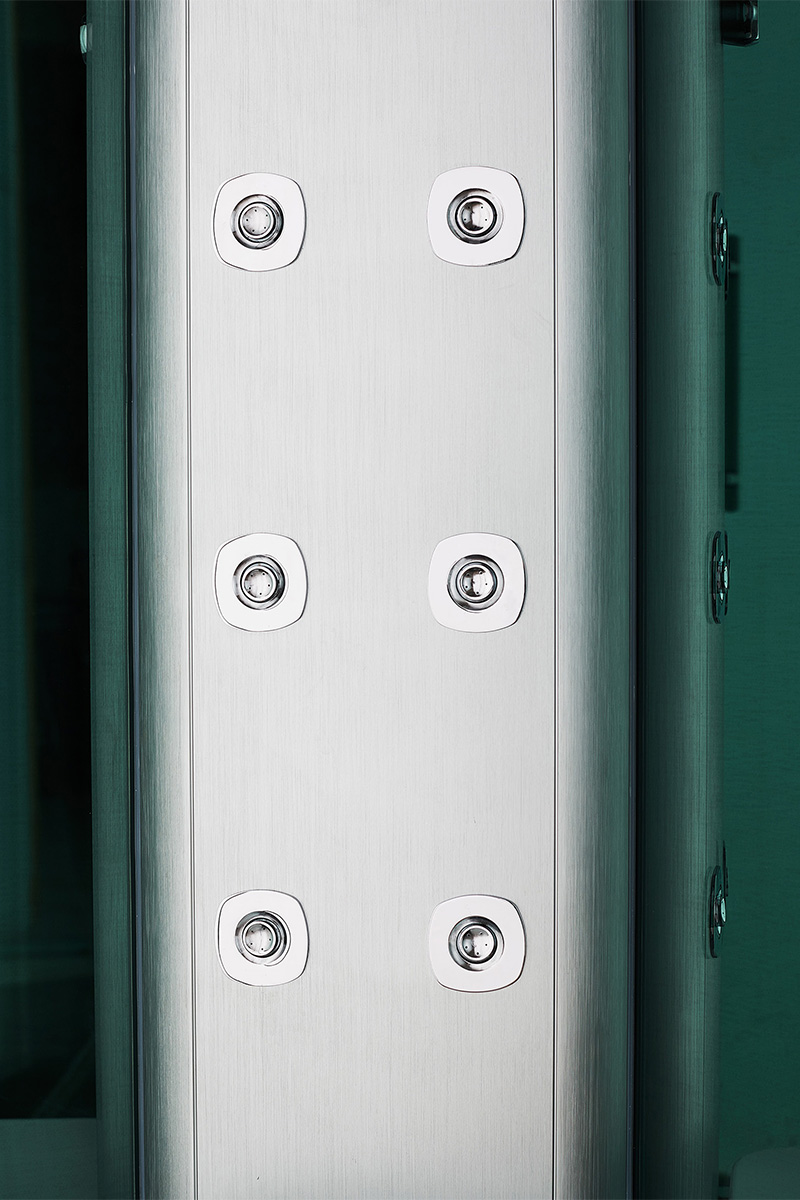

BU602 Back nozzles (2)

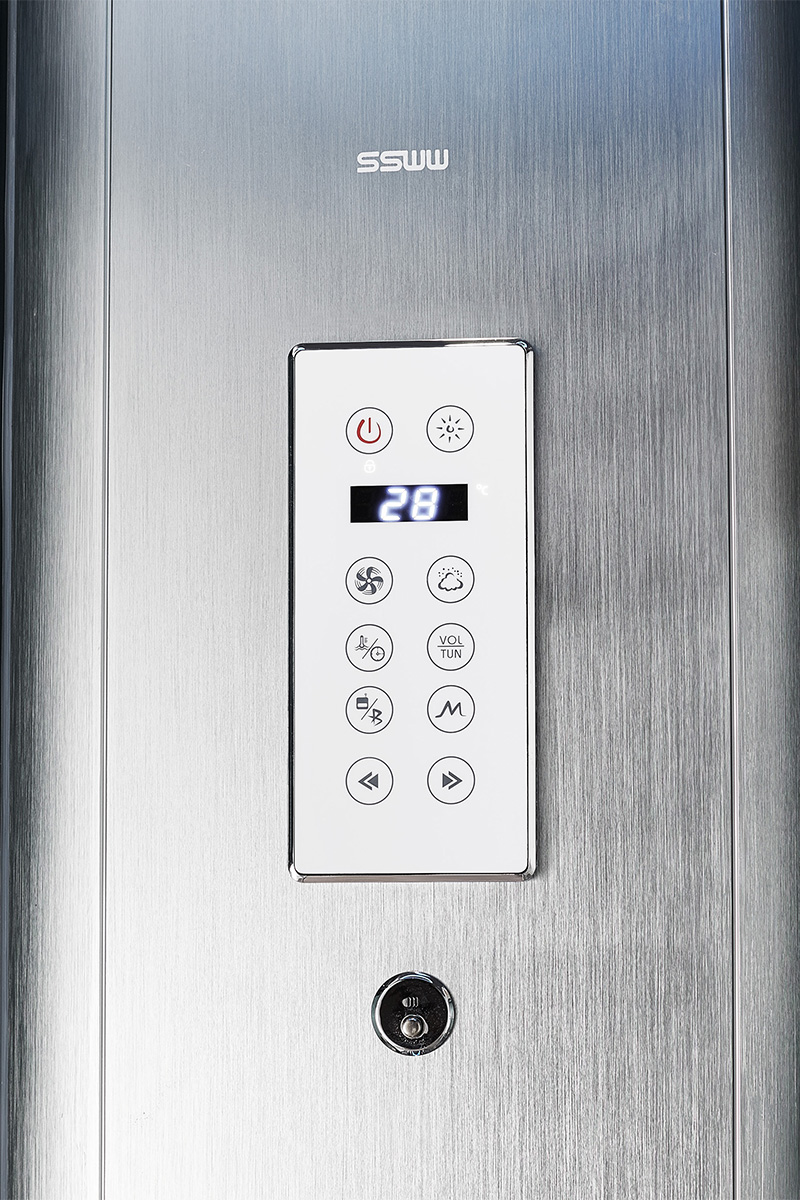

BU602 Control Panel

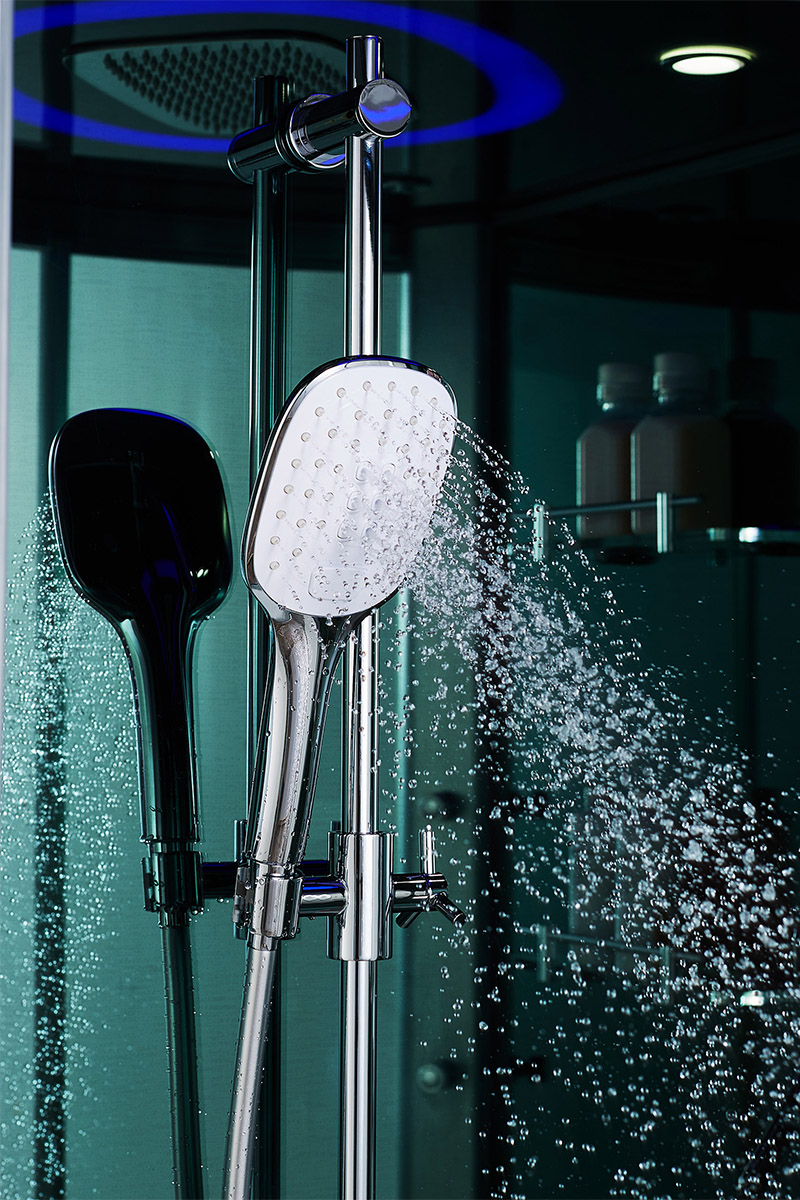

BU602 Hand shower (1)

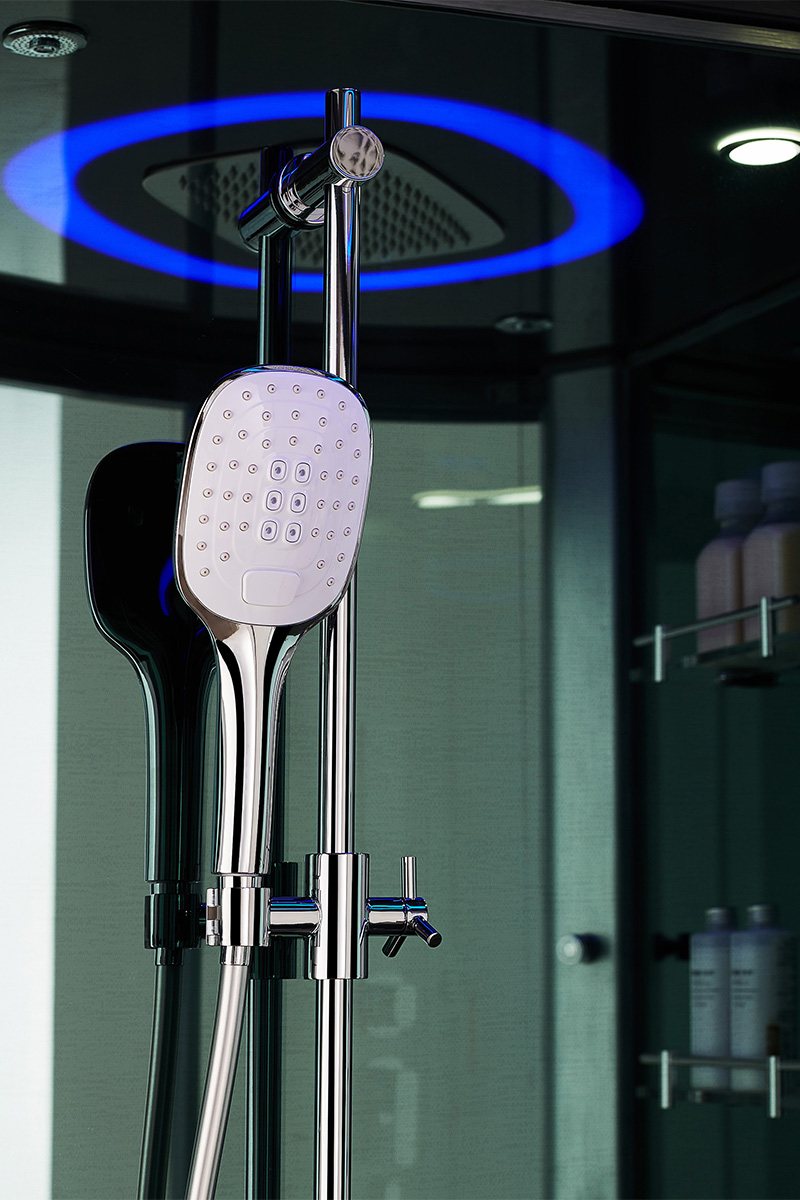

BU602 Hand shower (2)

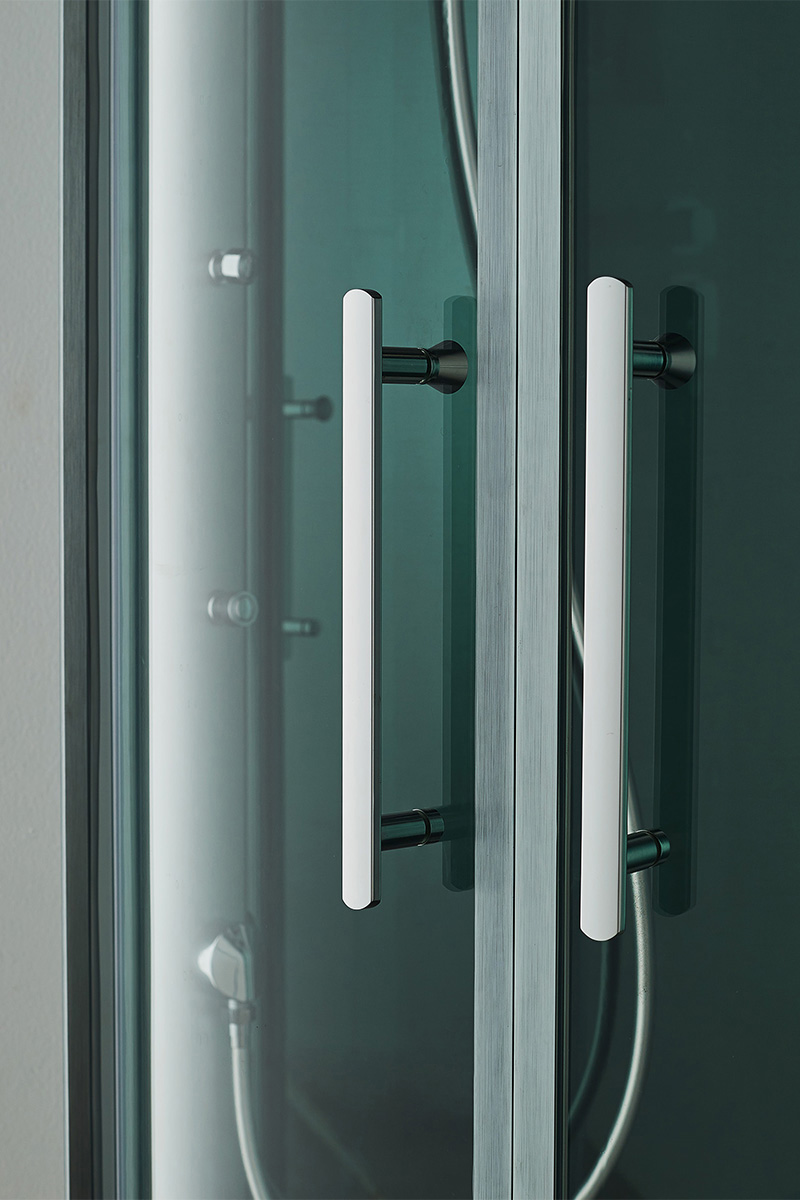

BU602 Handle

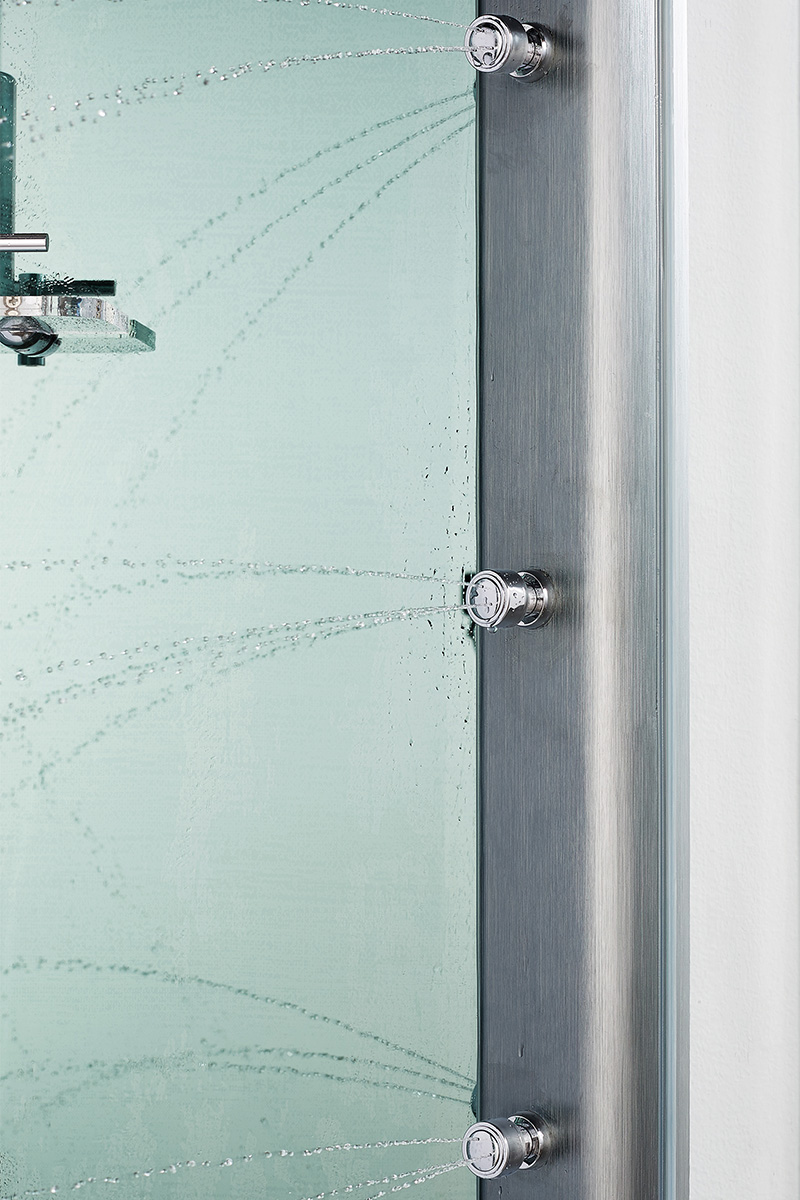

BU602 Side nozzles

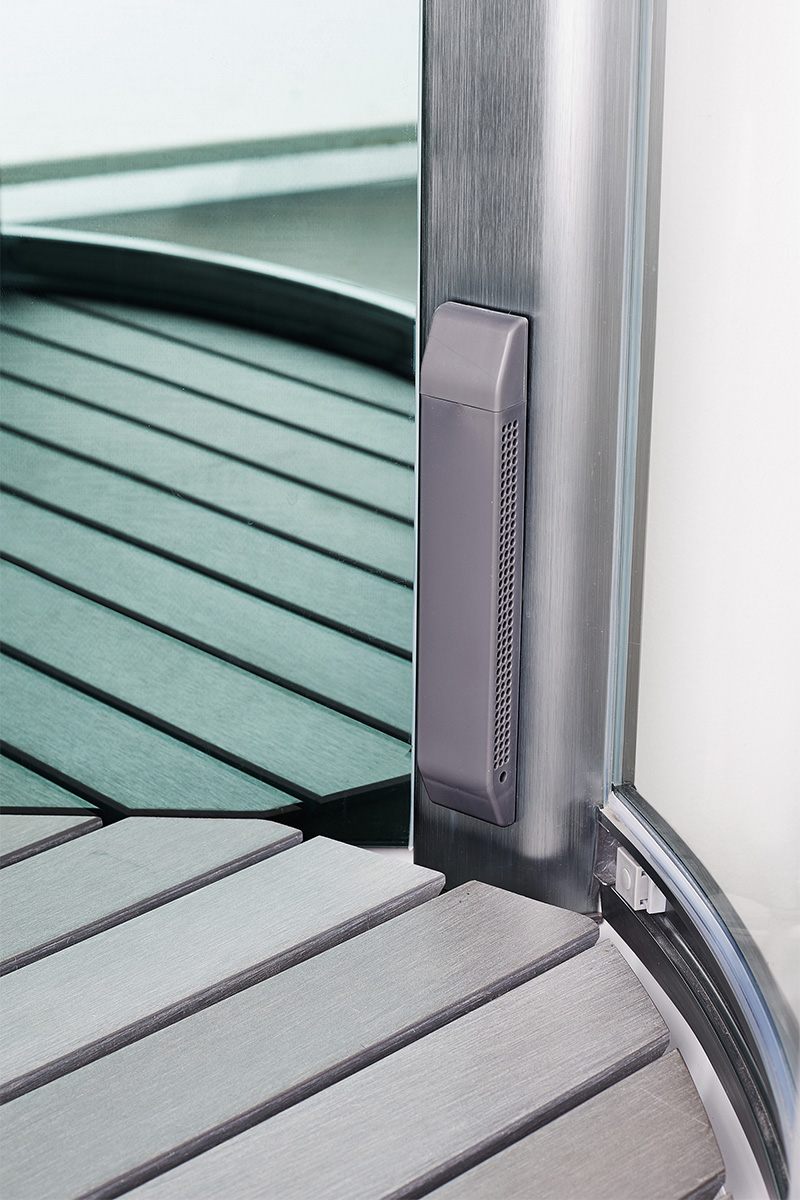

BU602 Steam box

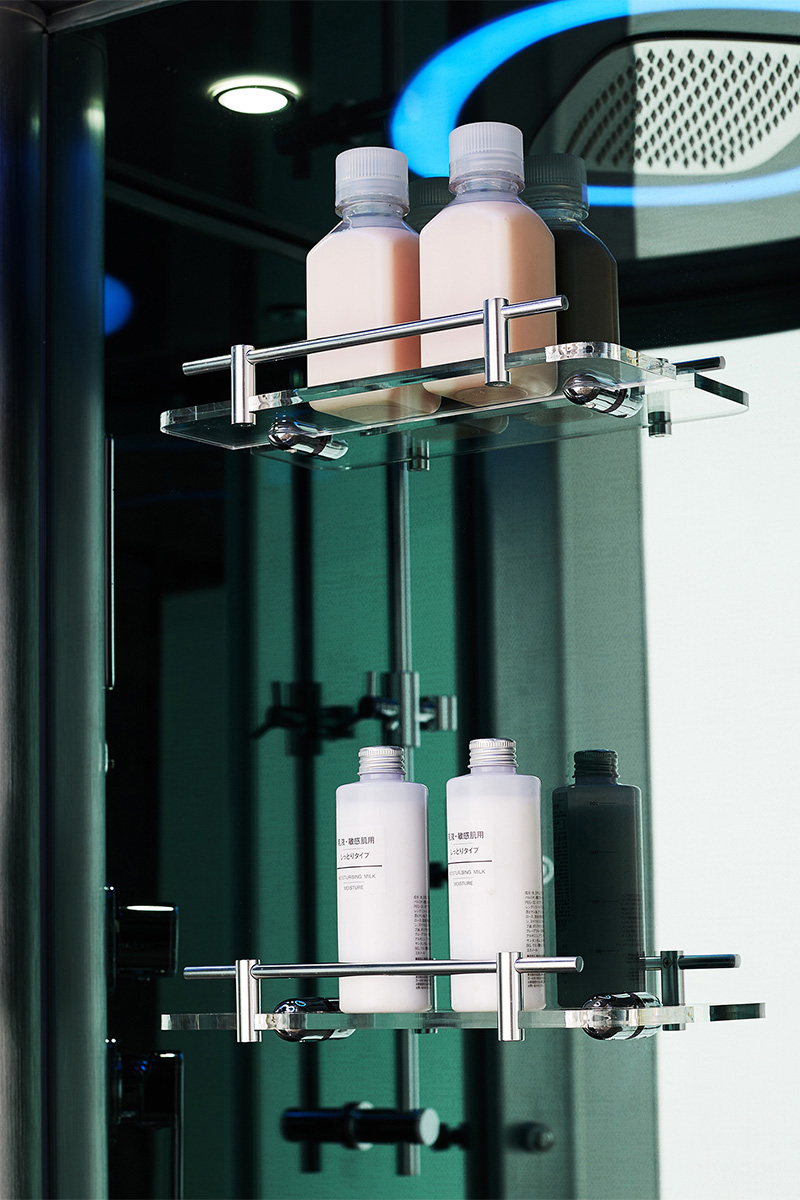

BU602 Glass shelf

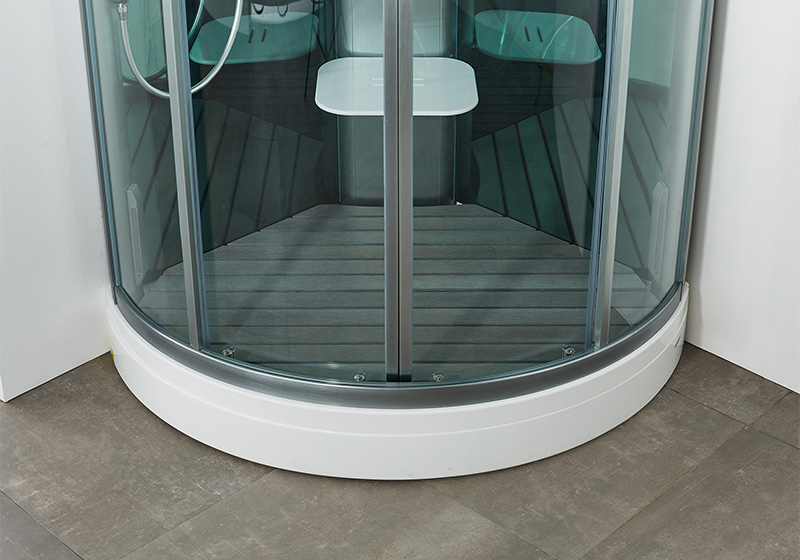

BU602 (8)

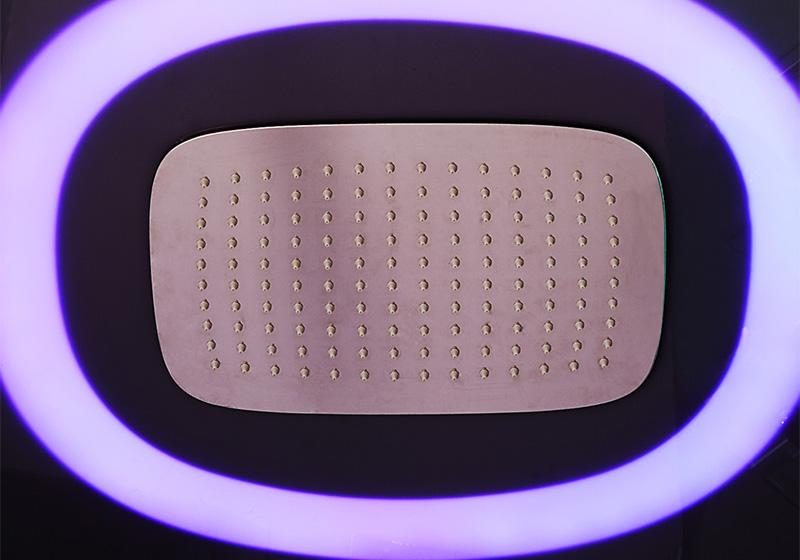

BU602 LED top light (1)

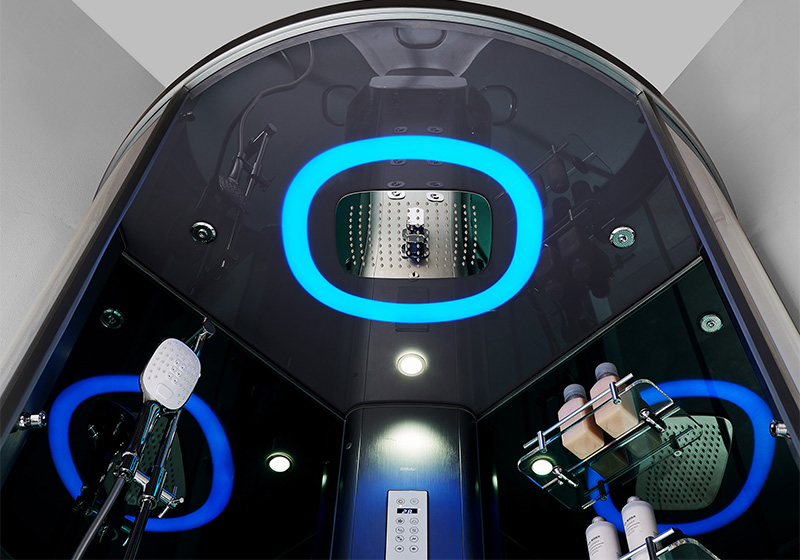

BU602 LED top light (2)

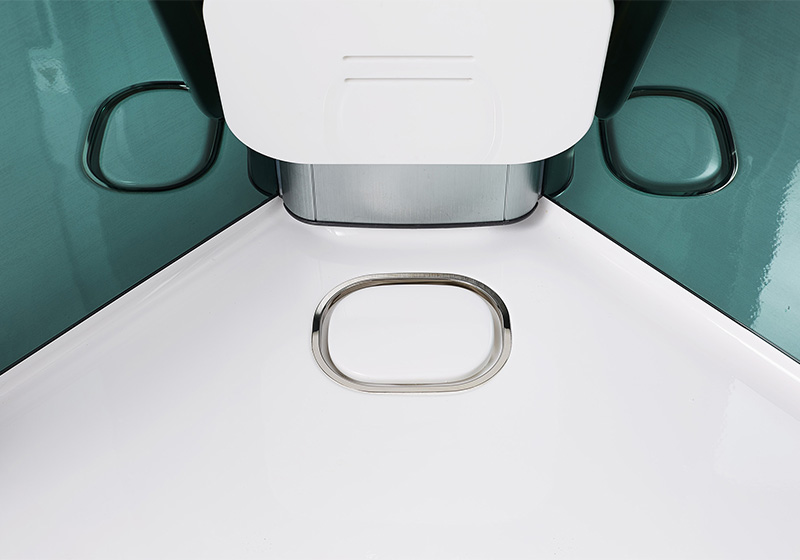

BU602 Drainer

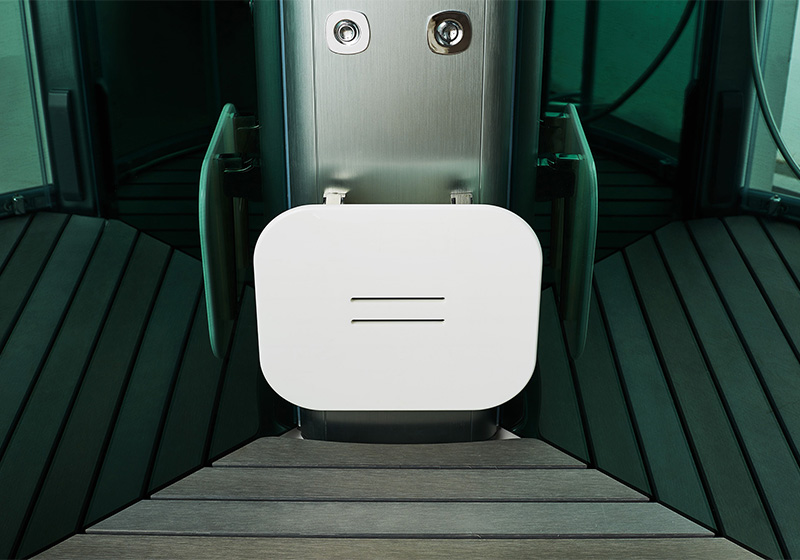

BU602 Fodable stool (1)

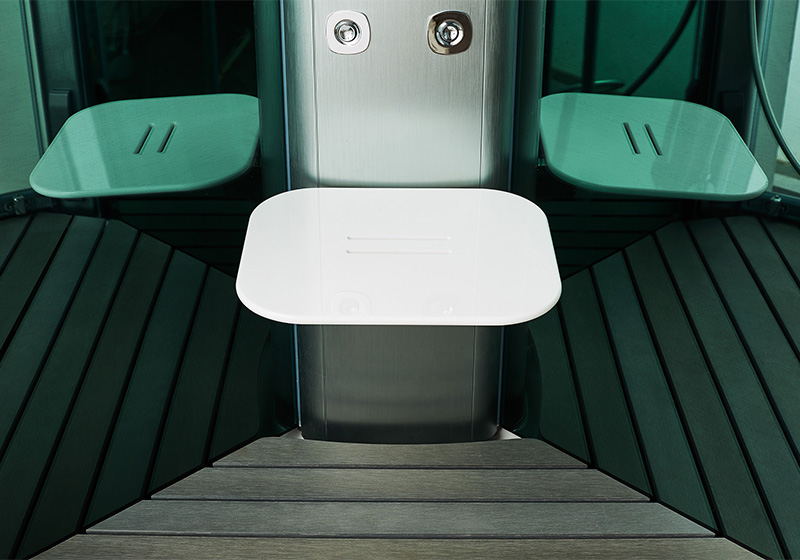

BU602 Fodable stool (2)
Structural illustration of BU602
1. Top gush
2. Loudspeaker
3.Top cover
4.Left-rubber mat
5.Shower
6.Lift shower support
7.Big eight-hole shower head
8.1.5m chrome chain without sleeve
9.Shower head water supply connection box
10.Medical bathing box
11.Top light
12.Fan
13 Riah-rubber mat
14.Rubber mat
15.Dual-layer rack
16.Control panel
17.Shipping mark/temperature sensor
18 Single handle
19.Cleaning opening
20 Nozzle
21.Foldable desk
22.Shower tray
23.Glass door
24.Fixed glass door
25.Handle
Water and supply installation illustration of BU602
The zero line . live line , and grounding line of indoor power sockets have to be in strictcompliance with standard configurations.
Prior to connecting hot and cold water pipes , please connect the corresponding pipeson the backplane , and secure them.
Suggestion
1.Branch circuit power wire diameter of Steam room should be not smaller than 1 2AWG.
2.User should install a 32A leakage protection switch on the branch wire for steam room power supply.
Product advantages
standard package
