SSWW STEAM ROOM /STEAM CABIN BU108A 1200X1200MM

SSWW STEAM ROOM /STEAM CABIN BU108A 1200X1200MM

Model: BU108A

Basic Information

  • Typ: Steam room
  • Dimension: 1200(L) ×1200(W) ×2200(H) mm
  • Direction: W/O direction
  • Control panel: S163BTC-A control panel
  • Shape: Sector
  • Seating persons: 2
  • Product Detail

    Product Tags

    Sector S

    Technical Parameters

    Glass color Transparent
    Glass door thickness 6mm
    Aluminum profile color Bright white
    Bottom tray color / skirt apron White/ W/O skirt
    Total rated power/Supply Current 3.1kw/ 13.5A
    Door style Two-direction opening & sliding door
    Flow rate of drainer  25L/M

    Package information(Choose one way):

    Way(1) Integral Package Package quantity: 1
    Total package volume: 4.0852m³
    Package way: poly bag+ carton + wooden board
    Transportation Weight(Gross Weight): 205kgs
    Way(2) Separate package Package quantity: 3
    Total package volume: 5.0358m³
    Package way: poly bag+ carton + wooden board
    Transportation Weight(Gross Weight): 246kgs

    Features & Functions

    Steam room with acrylic bottom tray

    Alarm system

    Acrylic shelf

    Ozonizer

    FM radio

    Fan

    Acrylic seat

    Mirror

    Ultra-thin Top Shower(SUS 304)

    One-piece acrylic back panel

    Bluetooth music player/phone answer

    Temperature probe

    Door handle(ABS)

    STEAM CABIN BU108A 1200X1200MM E

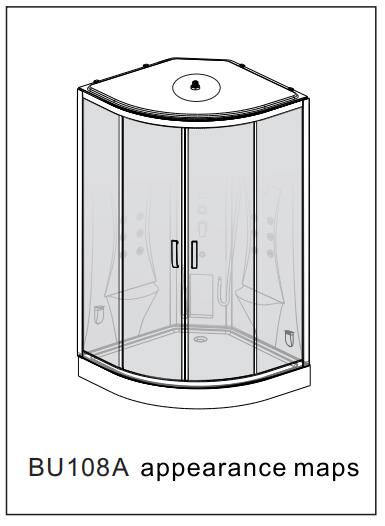

    Structural illustration of BU108A

    1.Top cover
    2.Mirror
    3.Loudspeaker
    4.Control panel
    5.Function transfer switch
    6.Mixer
    7.Nozzle Function transfer switch
    8.Feet massaging device
    9.Steam box

    10.Tub bod
    11.Fan
    12.Shower
    13.Lift shower support
    14.Nozzle
    15.Glass door
    16.Front fixed glass
    17.Handle

    Structural illustration of BU108A
    Structural illustration of BU108A

    The picture shows a left side spare part;

    Please refer it symmetrical ly if you choose a right side part.

    Water and supply installation illustration of BU108A

    The zero line , live line , and grounding line of indoor power sockets have to be in strictcompliance with standard configurations

    Prior to connecting hot and cold water pipes , please connect the corresponding pipeson the backplane , and secure them

    STEAM CABIN BU108A 1200X1200MM

    Rated parameters for power sockets: Housing supply : AC220V ~ 240V50HZ / 60HZ;

    Suggestion: Branch circuit power wire diameter of Steam room should be notsmallerthan 4 mm2 ( cooper wire )

    Remar: User shoud install a leakrotection switch on the branch wire for steam room power supply

    SSWW BU108A has a specific back functional column where all accessories and optionals are installed. The design goes for tradizional and it is dedicated to small hotels and private customers.

    HOW TO USE A STEAM ROOMS

    For the best experience, here are some tips for before, during and after your steam.

    Before the steam

    Avoid eating a heavy meal. If you are very hungry, try eating a small, light snack.

    Use the toilet, if needed.

    Take a shower and dry off completely.

    Wrap one towel around you. And prepare another one towel to sit on.

    You can prepare for the heat by taking a warm foot bath for 3 to 5 minutes.

    In the steam

    Spread out your towel. Sit quietly during the entire time.

    If there is room, you can lie down. Otherwise sit with your legs elevated slightly. Sit upright for the last two minutes and move your legs slowly before standing up; this will help you avoid feeling dizzy.

    You can stay in the steam room for up to 15 minutes. If you feel unwell at any point, leave immediately.

    After the steam

    Spend a few minutes in fresh air to cool down your lungs slowly.

    After that you can take a cold shower or possibly a dip in a cold plunge pool.

    You can also try a hot footbath afterwards. This will increase the blood flow to your feet and help release the body’s internal heat.

    Product advantages

    Product advantages

    standard package

    Packaging
