SSWW STEAM ROOM /STEAM CABIN BU110 1380X1380MM

SSWW STEAM ROOM /STEAM CABIN BU110 1380X1380MM

Model: BU108A

Basic Information

  • Typ: Steam room
  • Dimension: 1380(L) ×1380(W) ×2200(H) mm
  • Direction: W/O direction
  • Control panel: S163BTC-A control panel
  • Shape: Sector
  • Seating persons: 2
  • Product Detail

    Product Tags

    STEAM CABIN BU110 1380X1380MM

    Spending time in SSWW BU110 steam room can be a relaxing and healthy addition to your day at the spa. Steam room use heat to make you sweat and increase your heart rate and circulation. This can help you sleep more soundly and deeply when you go home.

    Steam rooms keep the humidity level at 100 percent. The high humidity in a steam room can soothe respiratory conditions, such as coughs and congestion. A steam room, though, isn’t for everyone with lung problems, because sometimes the humid air can make it difficult to breathe. A steam room is also a good choice for people with dry skin, because the moisture in the air can help hydrate the skin.

    BENEFITS OF STEAM ROOMS

    Steam rooms both offer several potential health benefits including:

    Increase circulation by speeding up the heart rate and widening the blood vessels.

    Relieve muscle soreness and arthritis pain.

    Improve movement of joints.

    Improve relaxation, sleep and feelings of well-being.

    Lower stress levels.

    Provide benefits for the heart and lungs similar to that of moderate exercise.

    Technical Parameters

    Glass color Transparent
    Glass door thickness 6mm
    Aluminum profile color Bright white
    Bottom tray color / skirt apron White/ W/O skirt
    Total rated power/Supply Current 3.1kw/ 13.5A
    Door style Two-direction opening & sliding door
    Flow rate of drainer  25L/M

    Package information(Choose one way):

    Way(1) Integral Package Package quantity: 1
    Total package volume: 4.3506m³
    Package way: poly bag+ carton + wooden board
    Transportation Weight(Gross Weight):258kgs
    Way(2) Separate package Package quantity: 3
    Total package volume: 4.597m³
    Package way: poly bag+ carton + wooden board
    Transportation Weight(Gross Weight):281kgs

    Features & Functions

    Steam room with acrylic bottom tray

    Alarm system

    Acrylic shelf

    Ozonizer

    FM radio

    Fan

    Acrylic seat



    Mirror

    Ultra-thin Top Shower(SUS 304)

    One-piece acrylic back panel

    Bluetooth music player/phone answer

    Temperature probe

    Door handle(ABS)

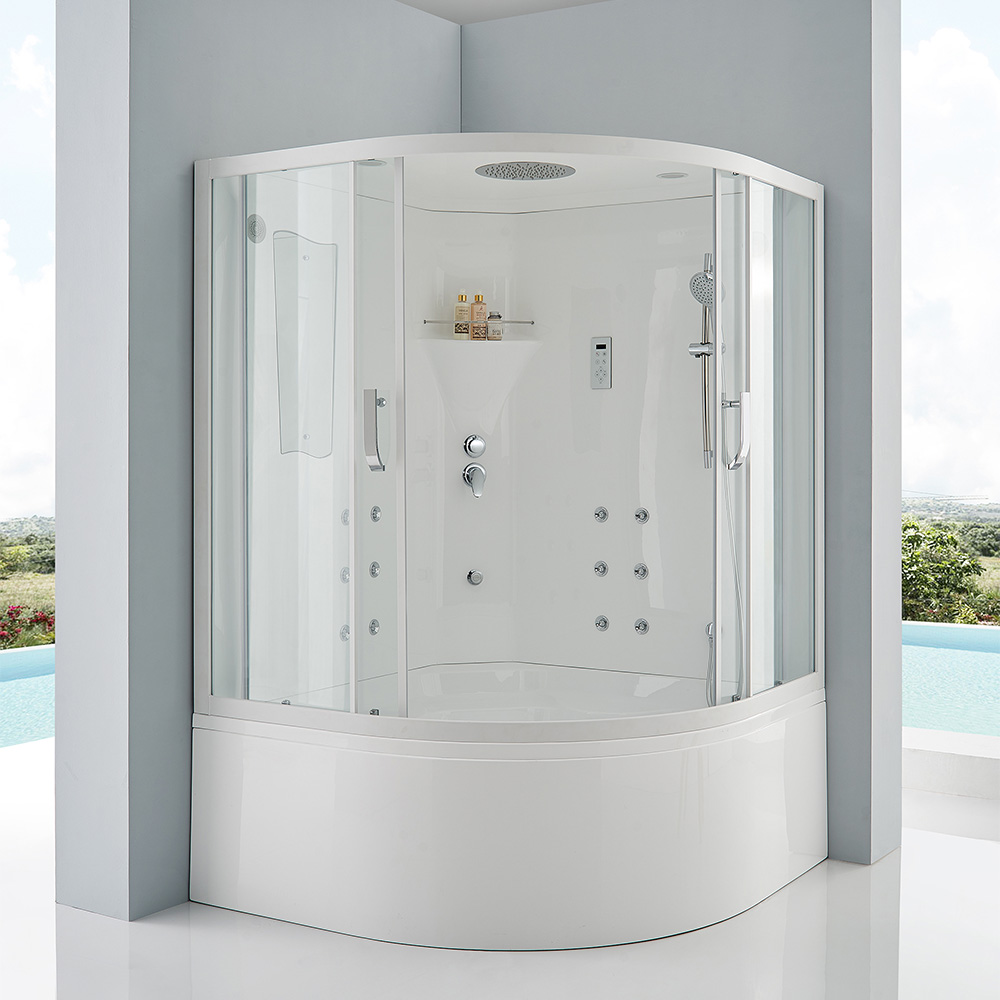

    STEAM CABIN BU110 1380X1380MM a

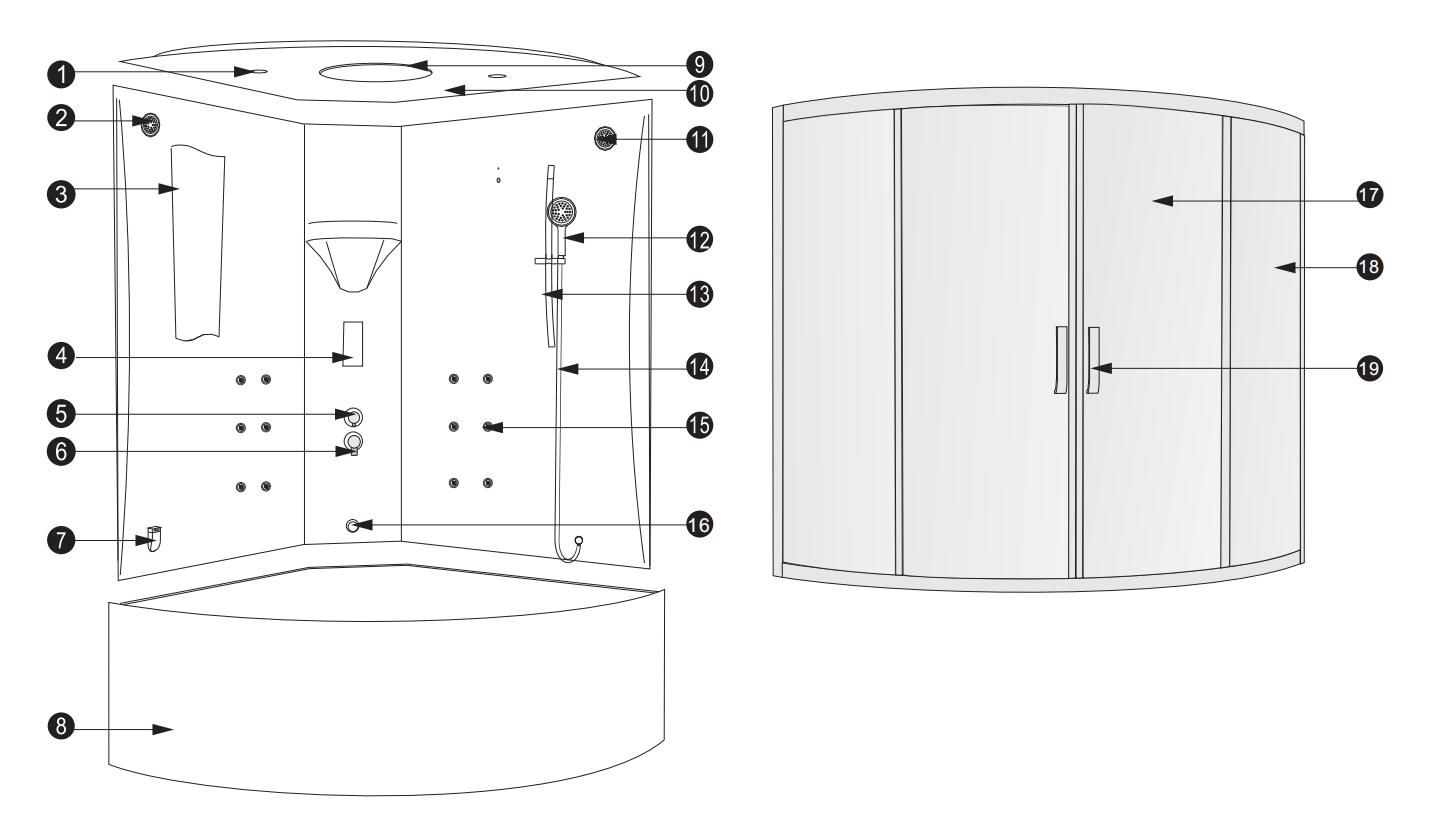

    Structural illustration of BU110

    1.Top gush
    2.Fan
    3.Mirror
    4.Control panel
    5.Function transfer switch
    6.Hot & cold water switcher
    7.Medical bathing box
    8.Tub body
    9.Top gush
    10.Top cover

    11.Loud speaker
    12.Shower
    13.Lift shower suppo
    14.1.5m chrome chain without sleeve
    15.Nozzle
    16.Change-over valve
    17.Glass door
    18.Fixed glass on the left side
    19.Handle

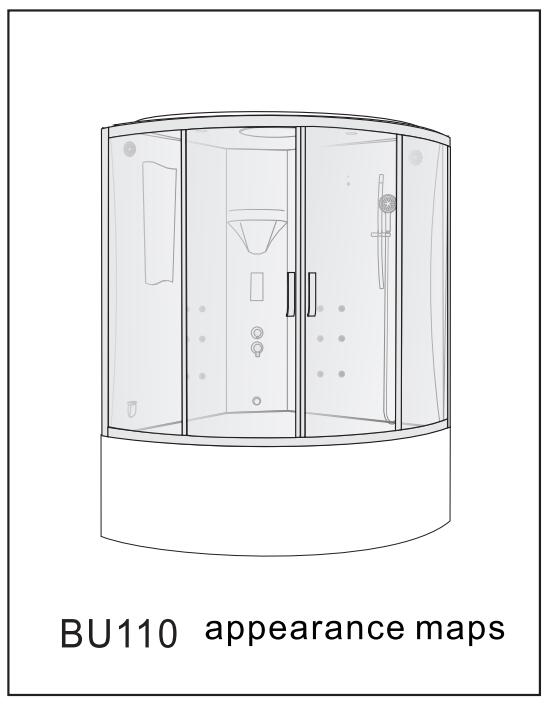

    Structural illustration of BU110
    Structural illustration of BU110

    The picture shows a left side spare part;

    Please refer it symmetrical ly if you choose a right side part.

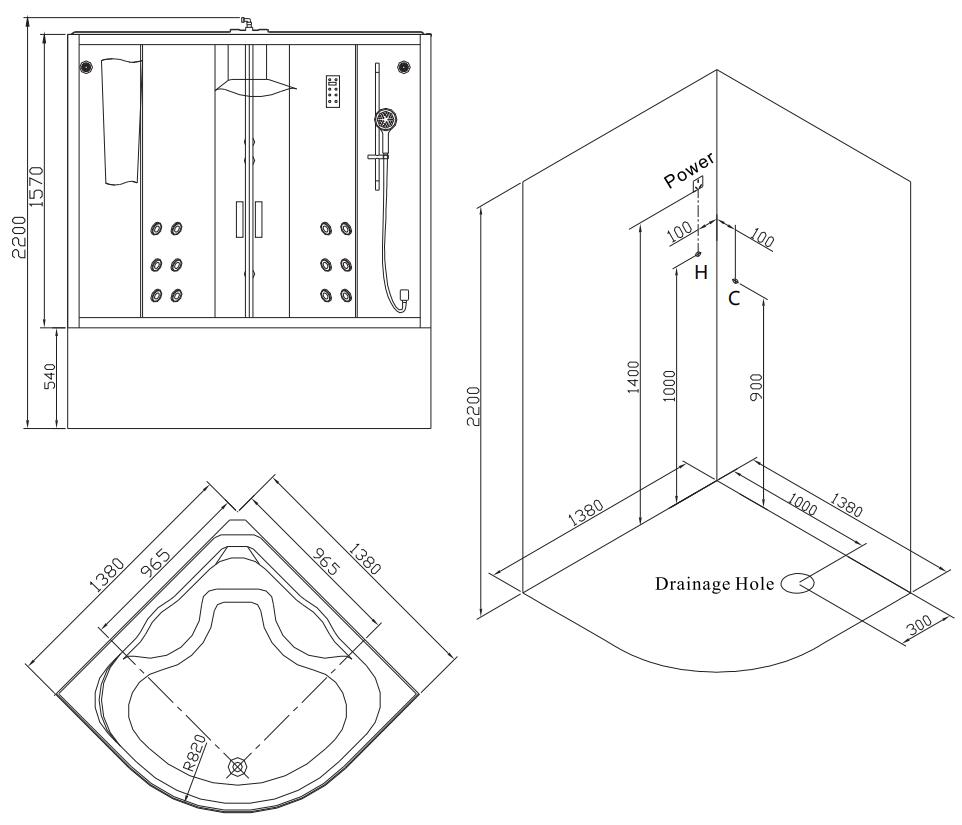

    Water and supply installation illustration of BU110

    The zero line , live line , and grounding line of indoor power sockets have to be in strictcompliance with standard configurations

    Prior to connecting hot and cold water pipes , please connect the corresponding pipeson the backplane , and secure them

    Water and supply installation illustration of BU110

    Rated parameters for power sockets:Housing supply steam:AC220V-240V50HZ/60HZ;

    Suggestion:1.Branch circuit power wire diameter of Steam room should be not smallerthan 4mm2 ( cooper wire )

    Remarks:User should install a 16 Aleakage protection switch on the branch wire forsteam room power supply

    Product advantages

    Product advantages

    standard package

    Packaging
