SWW STEAM ROOM /STEAM CABIN MODEL BU620

SWW STEAM ROOM /STEAM CABIN MODEL BU620

Model: BU620

Basic Information

  • Typ: Steam room
  • Dimension: 1200(L) ×1200(W) ×2180(H) mm
  • Direction: W/O DIRECTION
  • Control panel: S163BTC-A control panel
  • Shape: Arc
  • Seating persons: 1
  • Product Detail

    Product Tags

    STEAM CABIN MODEL BU620 c

    Technical Parameters

    Glass color Transparent
    Glass door thickness 6mm
    Aluminum profile color Dark Brushed
    Bottom tray color / skirt apron White / Two-sides & double-skirt
    Total rated power/Supply Current 3.1kw/ 13.5A
    Door style Two-direction opening & sliding door
    Flow rate of drainer  25L/ min
    Package quantity 3
    Total package volume 1.778m³
    Package way poly bag+ carton + wooden board
     Transportation Weight(Gross Weight) 255kgs
    20 GP / 40GP / 40HQ loading capacity 12sets /28sets /34sets

    Features & Functions

    Steam room with acrylic bottom tray

    Alarm system

    Glass shelf

    Ionizer

    FM radio

    Fan

    Folding acrylic stool

    Time /temperature setting

    Roof lighting & colorful LED light

    Bluetooth phone answering & music player

    Top shower & hand shower & back nozzles & side nozzles

    Hot/cold exchange mixer

    Steam generator cleaning

    Double steam outlet

    Aluminium door handle

    Wood-plastic floor (optional)

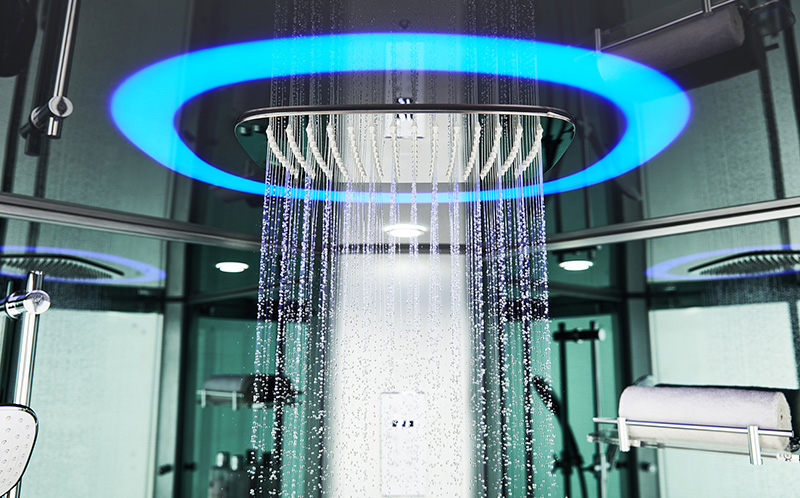

    BU620 Top shower

    BU620 Top shower

    BU620 Control panel

    BU620 Control panel

    BU620 Foldable stool

    BU620 Foldable stool

    BU620 Glass shelf

    BU620 Glass shelf

    BU620 hand shower

    BU620 hand shower

    BU620 Handle

    BU620 Handle

    BU620 Side nozzles

    BU620 Side nozzles

    Structural illustration of BU620

    1.Top gush
    2.Loudspeaker
    3.Top coverd
    4.Left-rubber mat
    5.Shower
    6.Lift shower support
    7.Big eight-hole shower head
    8.1.5m chrome chainwithout sleeve
    9.Shower head water ssupply connection bas
    10.Medical bathing box
    11.Top light
    12.Fan
    13.Righ-rubber mat

    14.Rubber mat
    15.Dual-layer rack
    16.Control panel
    17.Shipping mark/temperature sensor
    18.Single handle
    19.Cleaning opening
    20.Nozzle
    21.Foldable desk
    22.Shower tray
    23.Glass door
    24.Fixed glass door
    25.Handle

    STEAM CABIN MODEL BU620
    STEAM CABIN MODEL BU620

    Water and supply installation illustration of BU620

    The zero line , live line , and grounding line of indoor power sockets have to be in strictcompliance with standard configurations

    Prior to connecting hot and cold water pipes , please connect the corresponding pipeson the backplane , and secure them

    Water and supply installation illustration of BU620

    Suggestion:

    Branch circuit power wire diameter of Steam room should be not smaller than 12AWG;

    User should install a 32A leakage protection switch on the branch wire for steam room power supply.

    Product advantages

    Product advantages

    standard package

    Packaging
